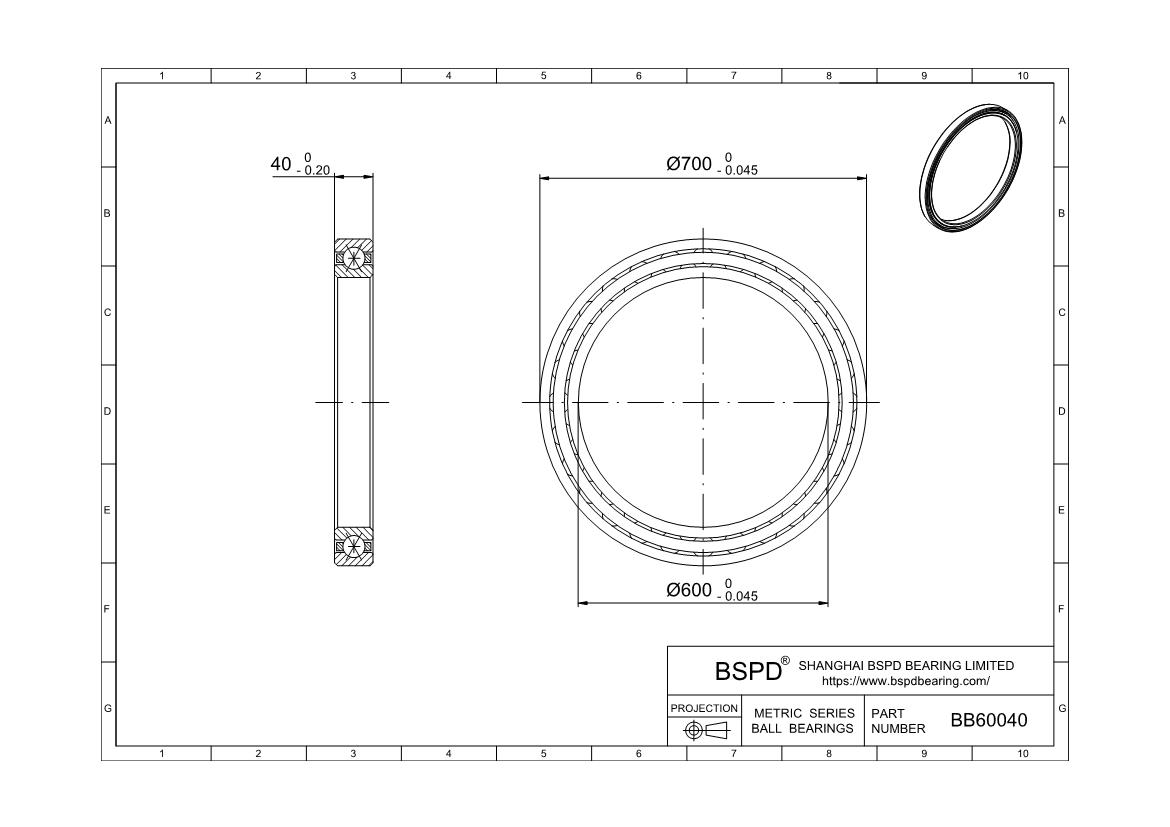

BB60040
BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 600 mm； Outer Diameter: 700 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Part Number | BB60040 | |
| Kaydon Number | 39349001 | |
| Weight (kg) | 27.24 | |
| Bore Dia (d) | 600 | |
| Bore Dia Tolerance | -0.045 | |
| Outer Dia (D) | 700 | |
| Outer Dia Tolerance | -0.045 | |
| Width (B) | 40 | |
| Width Tolerance | -0.2 | |
| R | 4 | |
| Dynamic (lbs) | Radial | 154053 |
| axial | 263671 | |
| Moment | 37565 | |
| Standard Diametral Clearance | 0.09-0.12 | |
| Radial and Axial Runout ?Inner | 0.045 | |
| Radial and Axial Runout Outer | 0.045 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings BB60040 ? BB Series Metric Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
