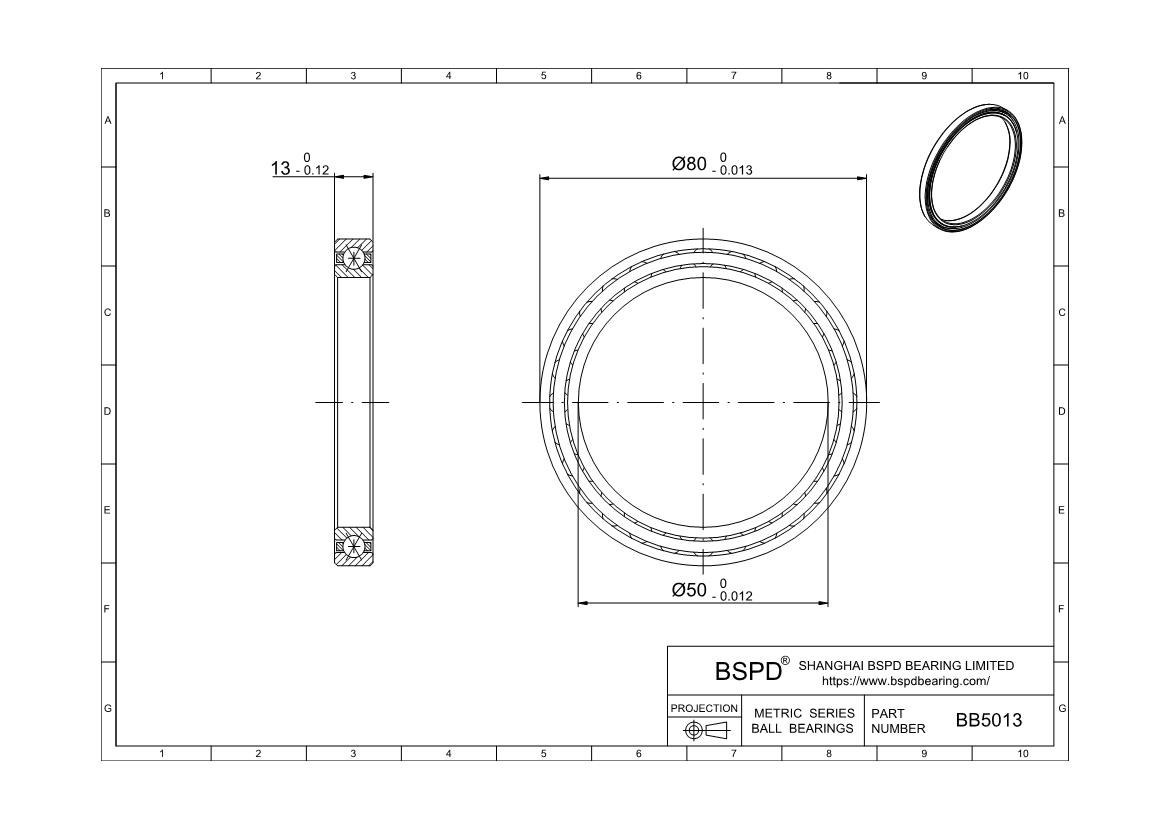

BB5013
BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 80 mm； Width (Thickness): 13 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Part Number | BB5013 | |
| Kaydon Number | 39322001 | |
| Weight (kg) | 0.24 | |
| Bore Dia (d) | 50 | |
| Bore Dia Tolerance | -0.012 | |
| Outer Dia (D) | 80 | |
| Outer Dia Tolerance | -0.013 | |
| Width (B) | 13 | |
| Width Tolerance | -0.12 | |
| R | 1 | |
| Dynamic (lbs) | Radial | 9297 |
| axial | 12955 | |
| Moment | 227 | |
| Standard Diametral Clearance | 0.03-0.056 | |
| Radial and Axial Runout ?Inner | 0.013 | |
| Radial and Axial Runout Outer | 0.013 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings BB5013 ? BB Series Metric Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
