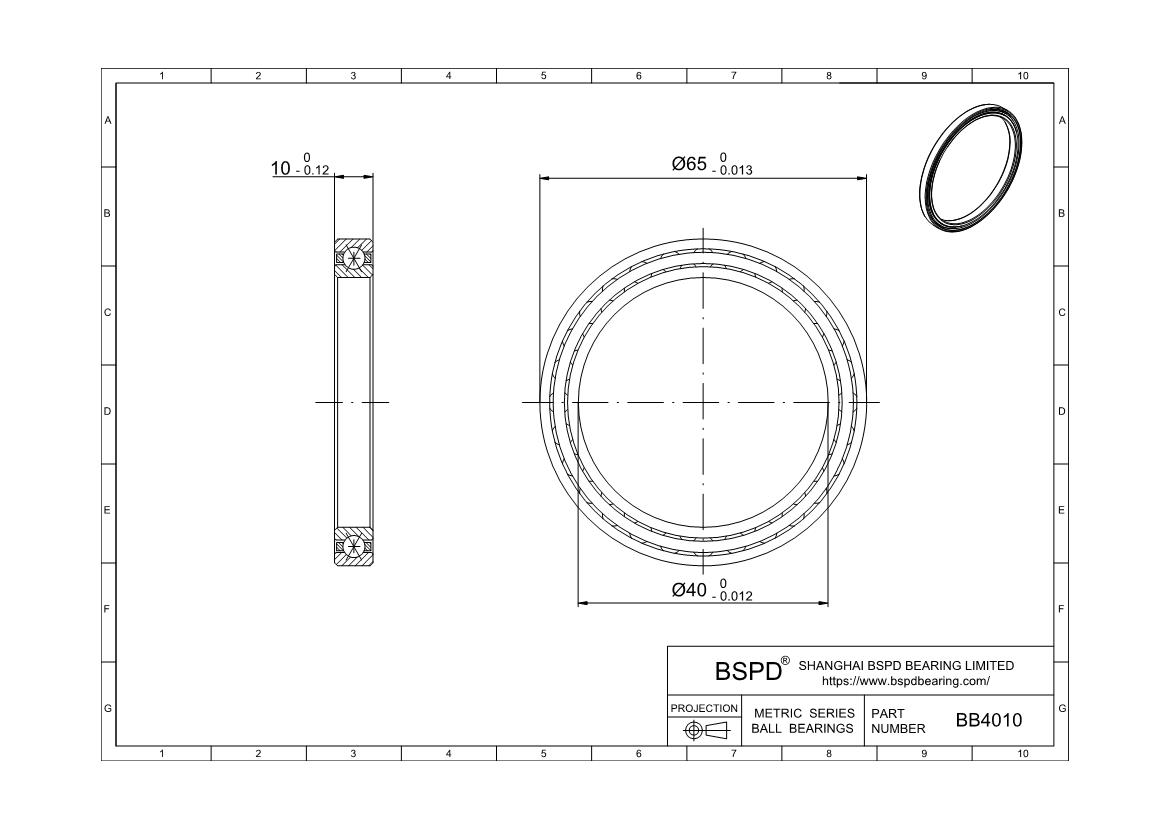

BB4010
BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 65 mm； Width (Thickness): 10 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Part Number | BB4010 | |
| Kaydon Number | 39320001 | |
| Weight (kg) | 0.12 | |
| Bore Dia (d) | 40 | |
| Bore Dia Tolerance | -0.012 | |
| Outer Dia (D) | 65 | |
| Outer Dia Tolerance | -0.013 | |
| Width (B) | 10 | |
| Width Tolerance | -0.12 | |
| R | 1 | |
| Dynamic (lbs) | Radial | 5423 |
| axial | 7610 | |
| Moment | 107 | |
| Standard Diametral Clearance | 0.03-0.043 | |
| Radial and Axial Runout ?Inner | 0.013 | |
| Radial and Axial Runout Outer | 0.013 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
