BB20030
BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 200 mm; Outer Diameter: 280 mm; Width (Thickness): 30 mm;
![BB20030](https://www.bspdbearing.com/wp-content/uploads/2021/06/thin_l1.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball | |
For Load Direction | Four Point | |
Construction | Single Row | |
Seal Type | Open | |
Part Number | BB20030 | |
Kaydon Number | 39337001 | |
Weight (kg) | 5.72 | |
Bore Dia (d) | 200 | |
Bore Dia Tolerance | -0.03 | |
Outer Dia (D) | 280 | |
Outer Dia Tolerance | -0.03 | |
Width (B) | 30 | |
Width Tolerance | -0.12 | |
R | 2.5 | |
Dynamic (lbs) | Radial | 71471 |
axial | 107677 | |
Moment | 6435 | |
Standard Diametral Clearance | 0.06-0.09 | |
Radial and Axial Runout ?Inner | 0.030 | |
Radial and Axial Runout Outer | 0.030 |

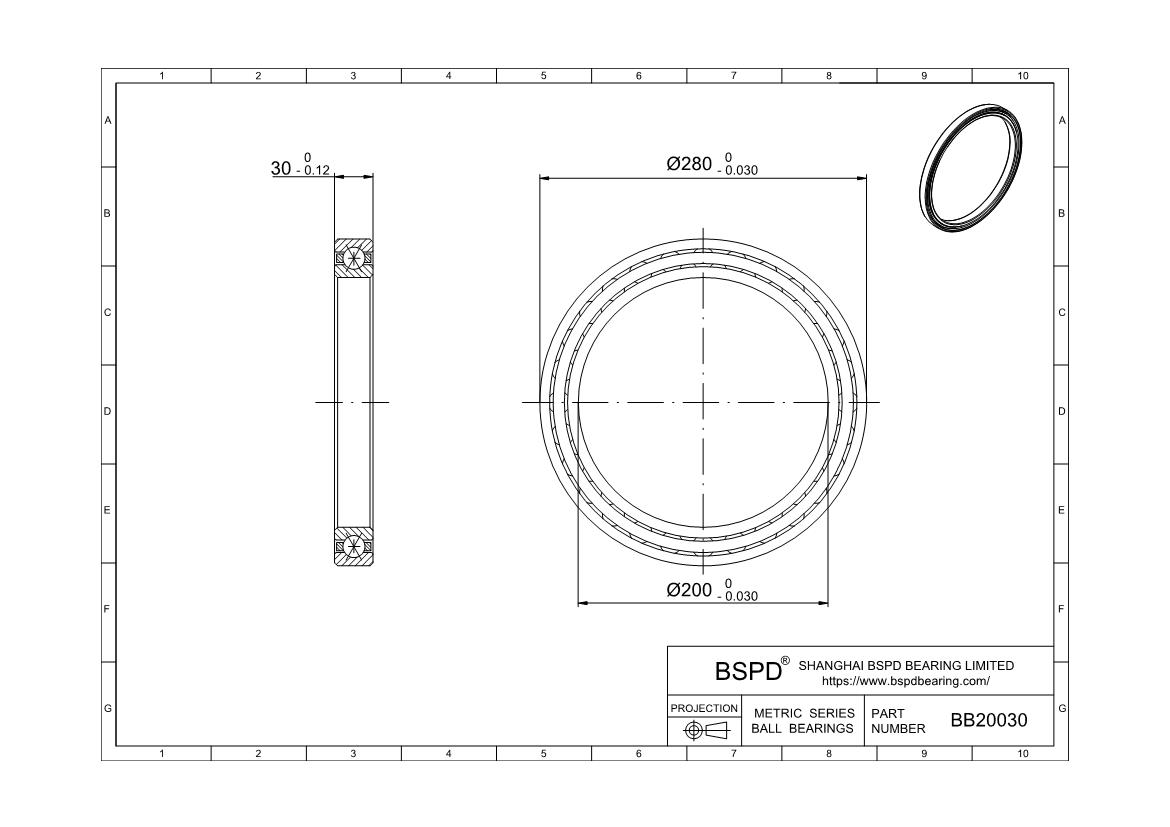

![BB20030](/wp-content/uploads/pdf/BB20030/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings BB20030 ? BB Series Metric Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
