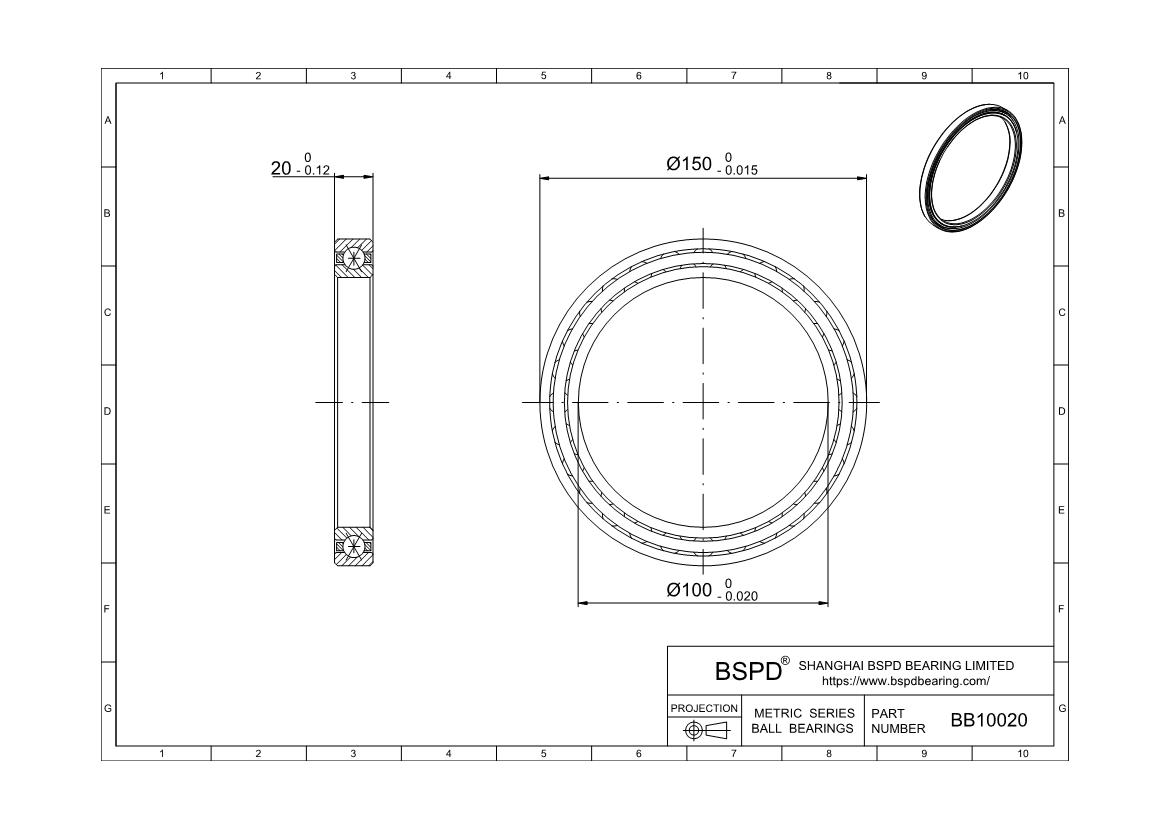

BB10020 BB Series Metric Ball Bearings
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 150 mm； Width (Thickness): 20 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type	Ball
For Load Direction	Four Point
Construction	Single Row
Seal Type	Open
Part Number	BB10020
Kaydon Number	39327001
Weight (kg)	1.21
Bore Dia (d)	100
Bore Dia Tolerance	-0.02
Outer Dia (D)	150
Outer Dia Tolerance	-0.015
Width (B)	20
Width Tolerance	-0.12
R	1.5
Dynamic (lbs)	Radial	23487
	axial	34127
	Moment	1102
Standard Diametral Clearance	0.041-0.066
Radial and Axial Runout ?Inner	0.015
Radial and Axial Runout Outer	0.015

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
