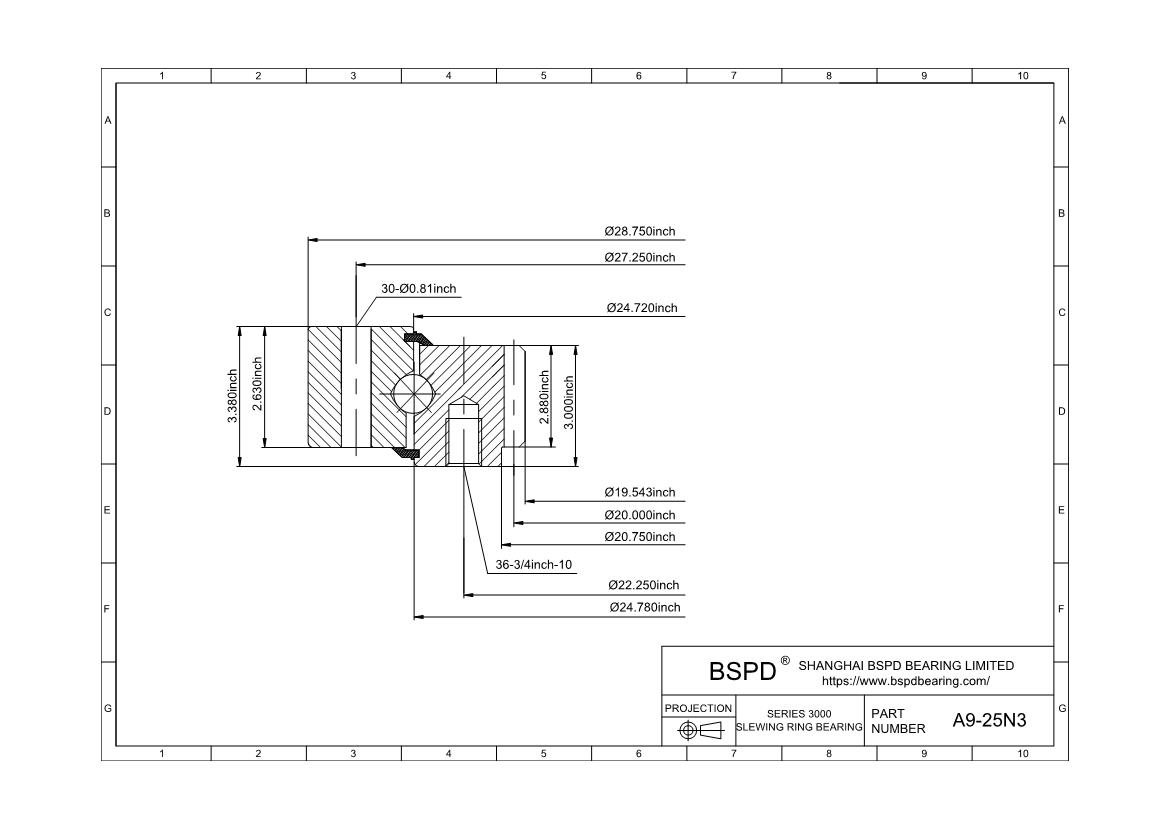

A9-25N3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 19.543"； Outer Diameter: 28.75"； Width (Thickness): 3.38";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A9-25N3 |
| Raceway Moment (ft-lbs) | 250000 |
| Compressive Thrust(lbs) | 529000 |
| Weight(lbs) | 242 |
| Outline Dimensions(inches) | |
| OD | 28.75 |
| ID | 19.543 |
| OE | 20.75 |
| OI | 24.72 |
| IO | 24.78 |
| HT | 3.38 |
| OH | 2.63 |
| IH | 3 |
| Mounting Holes | |
| OBC | 27.250 |
| OU | 0.81 |
| No of OBC Holes | 30 |
| IBC | 22.25 |
| IU | 3/4-10 |
| No of IBC Holes | 36 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | 20 |
| DP | 3.5 |
| NO of Teeth | 70 |
| Tooth From | 20d, Stub |
| F | 2.88 |
| Tangential Gear Capacity(lbs) | 19500 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A9-25N3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
