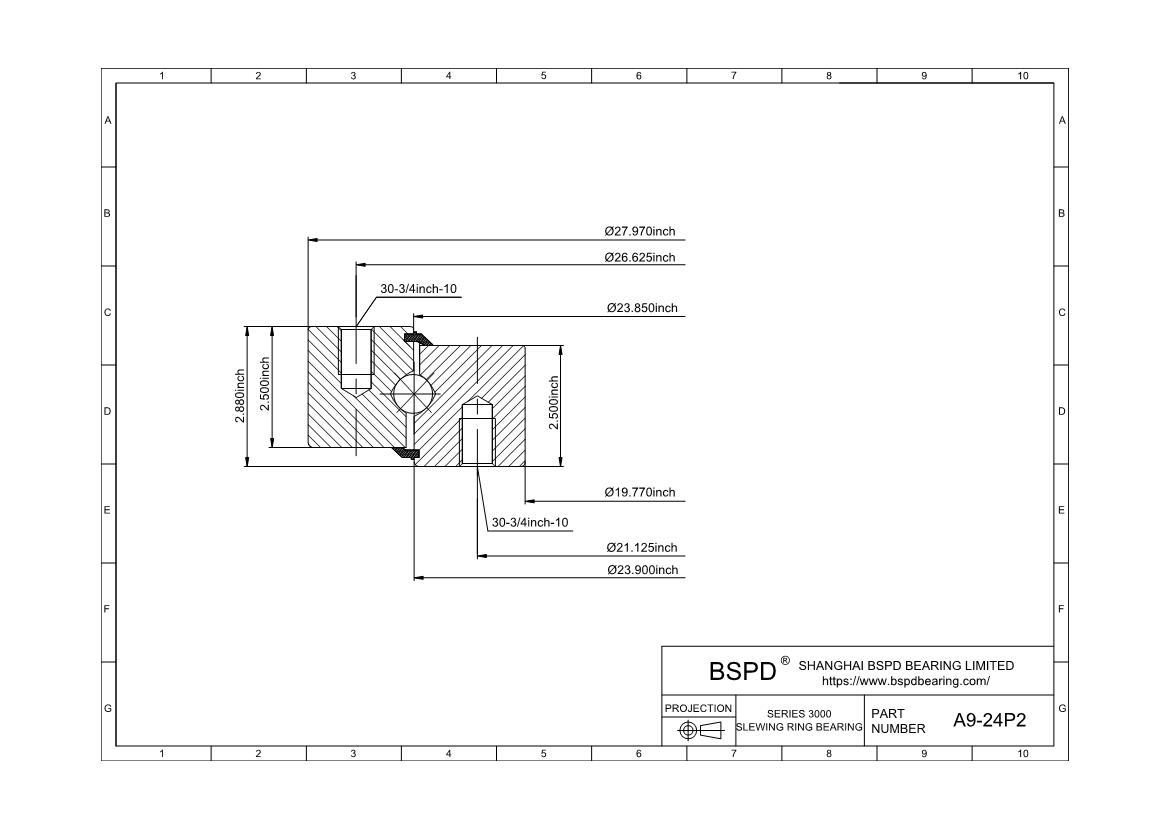

A9-24P2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 19.77"； Outer Diameter: 27.97"； Width (Thickness): 2.88";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A9-24P2 |
| Raceway Moment (ft-lbs) | 194000 |
| Compressive Thrust(lbs) | 426000 |
| Weight(lbs) | 188 |
| Outline Dimensions(inches) | |
| OD | 27.97 |
| ID | 19.77 |
| OE | - |
| OI | 23.85 |
| IO | 23.9 |
| HT | 2.88 |
| OH | 2.5 |
| IH | 2.5 |
| Mounting Holes | |
| OBC | 26.625 |
| OU | 3/4-10 |
| No of OBC Holes | 30 |
| IBC | 21.125 |
| IU | 3/4-10 |
| No of IBC Holes | 30 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A9-24P2 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
