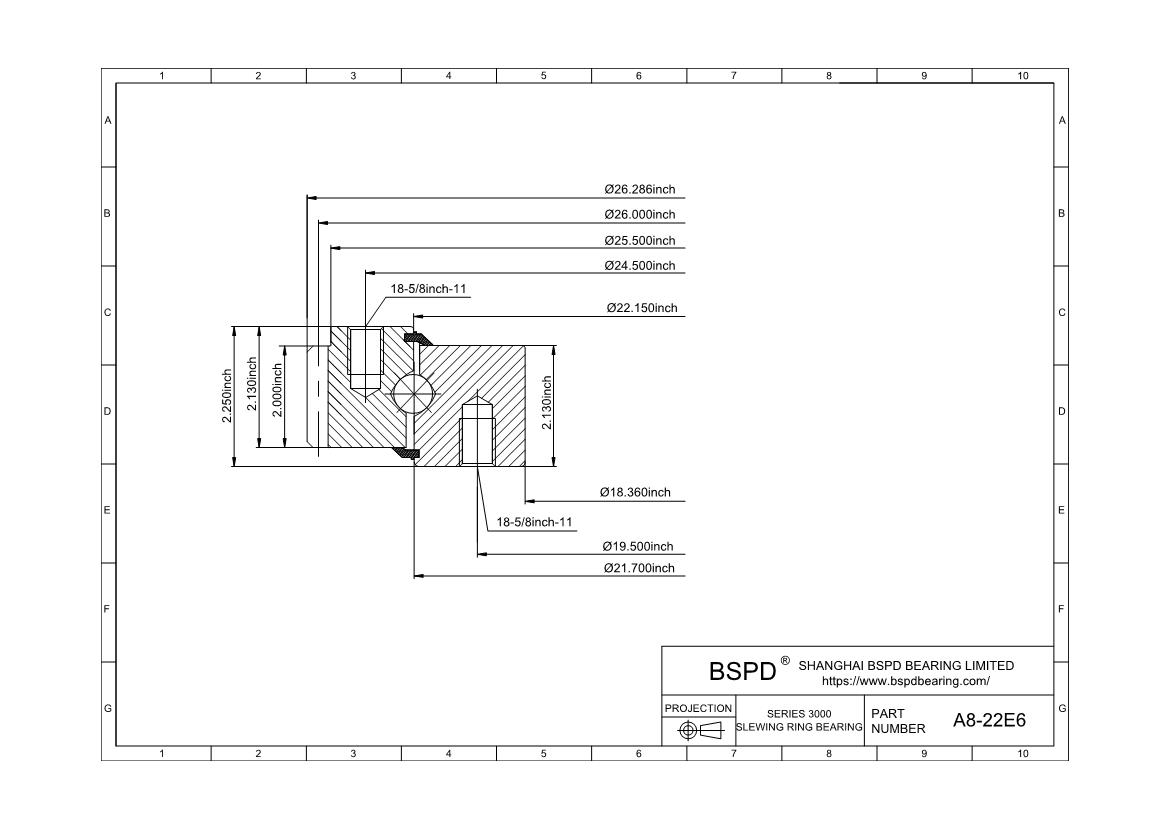

A8-22E6
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 18.36"； Outer Diameter: 26.286"； Width (Thickness): 2.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A8-22E6 |
| Raceway Moment (ft-lbs) | 130000 |
| Compressive Thrust(lbs) | 309000 |
| Weight(lbs) | 154 |
| Outline Dimensions(inches) | |
| OD | 26.286 |
| ID | 18.36 |
| OE | 25.5 |
| OI | 22.15 |
| IO | 21.7 |
| HT | 2.25 |
| OH | 2.13 |
| IH | 2.13 |
| Mounting Holes | |
| OBC | 24.5 |
| OU | 5/8-11 |
| No of OBC Holes | 18 |
| IBC | 19.5 |
| IU | 5/8-11 |
| No of IBC Holes | 18 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 26 |
| DP | 5 |
| NO of Teeth | 130 |
| Tooth From | 20d,5/7 Fellows |
| F | 2 |
| Tangential Gear Capacity(lbs) | 7600 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A8-22E6 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
