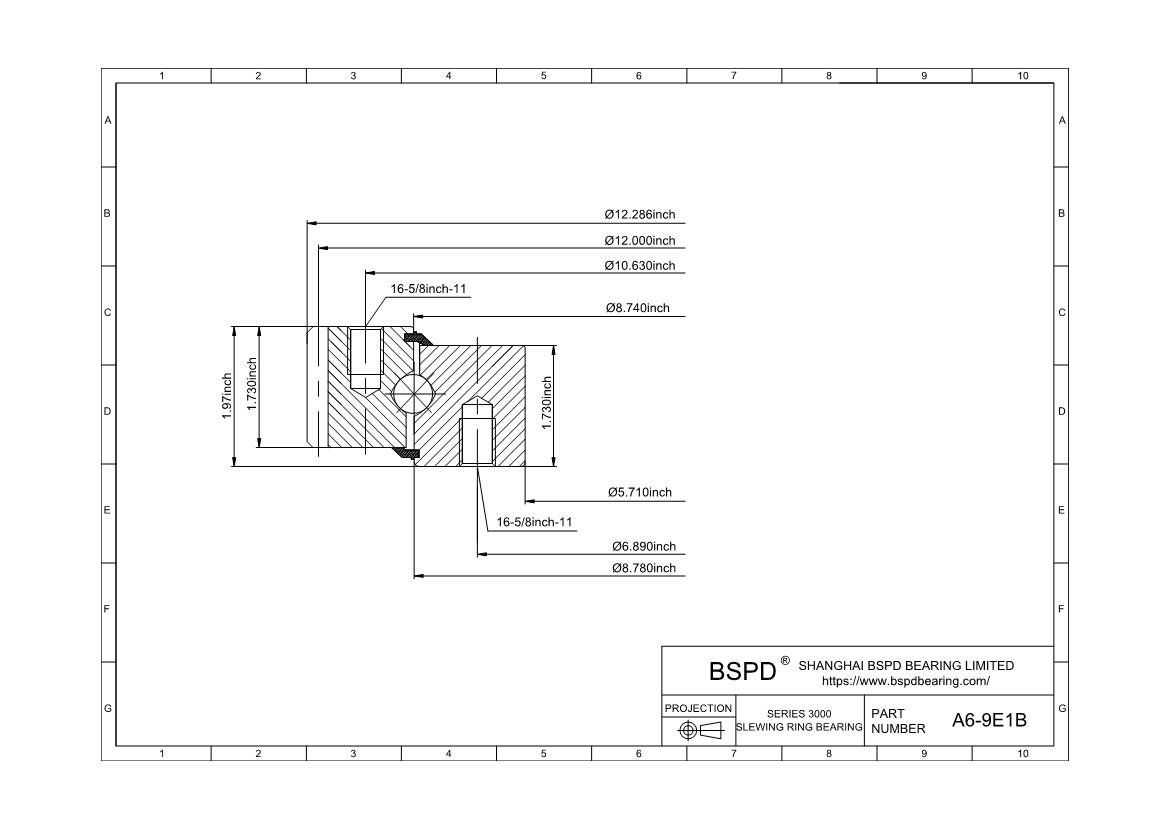

A6-9E1B
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 5.71"； Outer Diameter: 12.286"； Width (Thickness): 1.97";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A6-9E1B |
| Raceway Moment (ft-lbs) | 15200 |
| Compressive Thrust(lbs) | 91200 |
| Weight(lbs) | 37 |
| Outline Dimensions(inches) | |
| OD | 12.286 |
| ID | 5.71 |
| OE | - |
| OI | 8.74 |
| IO | 8.78 |
| HT | 1.97 |
| OH | 1.73 |
| IH | 1.73 |
| Mounting Holes | |
| OBC | 10.63 |
| OU | 5/8-11 |
| No of OBC Holes | 16 |
| IBC | 6.89 |
| IU | 5/8-11 |
| No of IBC Holes | 16-1 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 12 |
| DP | 5 |
| NO of Teeth | 60 |
| Tooth From | 20d,5/7 Fellows |
| F | 1.73 |
| Tangential Gear Capacity(lbs) | 6200 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A6-9E1B ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
