A6-11E4 Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 8.27"； Outer Diameter: 14.685"； Width (Thickness): 1.97";

REQUEST FOR QUOTE

Product Attributes

Specifications
Part Number	A6-11E4
Raceway Moment (ft-lbs)	24200
Compressive Thrust(lbs)	111500
Weight(lbs)	45

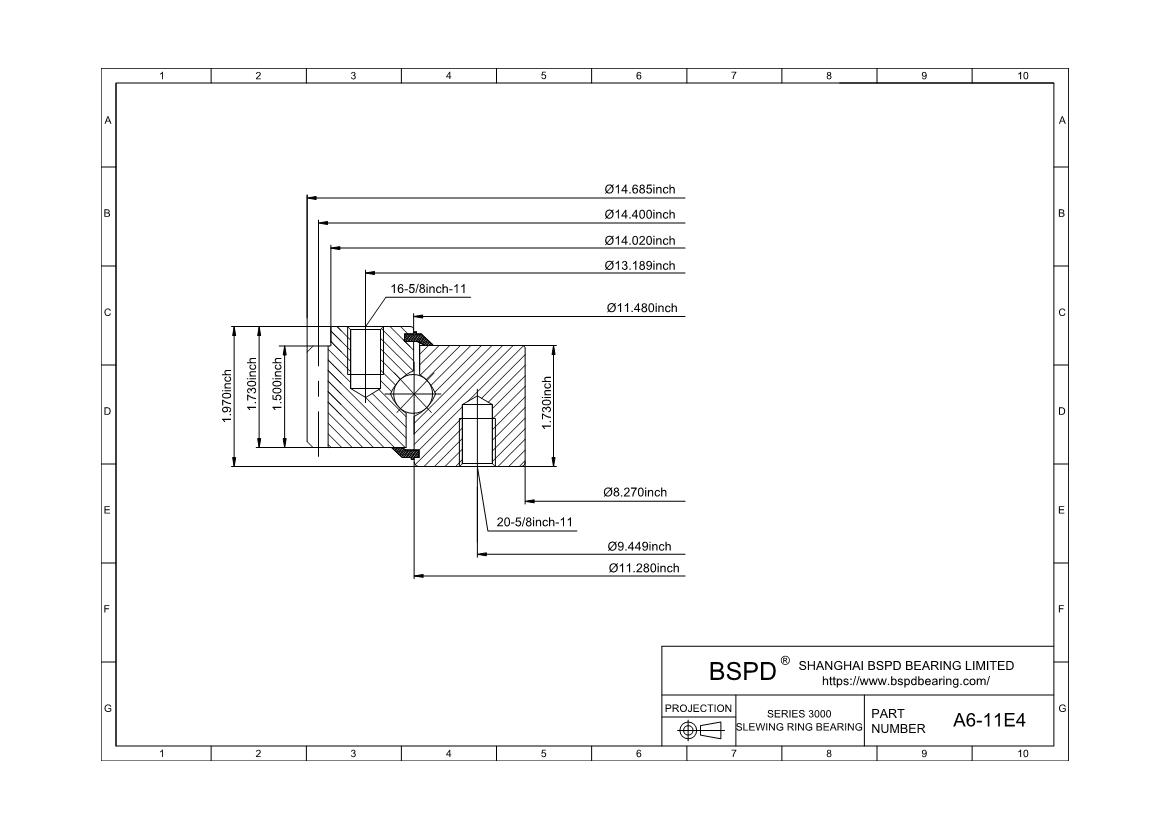

Outline Dimensions(inches)
OD	14.685
ID	8.27
OE	14.02
OI	11.48
IO	11.28
HT	1.97
OH	1.73
IH	1.73
Mounting Holes
OBC	13.189
OU	5/8-11
No of OBC Holes	16
IBC	9.449
IU	5/8-11
No of IBC Holes	20
Hole Figure Style	2
Gear Data
PD	14.4
DP	5
NO of Teeth	72
Tooth From	20d,5/7 Fellows
F	1.5
Tangential Gear Capacity(lbs)	6000

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
