A4-23P2A Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 20.0"； Outer Diameter: 26.0"； Width (Thickness): 1.82";

REQUEST FOR QUOTE

Product Attributes

Specifications
Part Number	A4-23P2A
Raceway Moment (ft-lbs)	47800
Compressive Thrust(lbs)	109000
Weight(lbs)	83

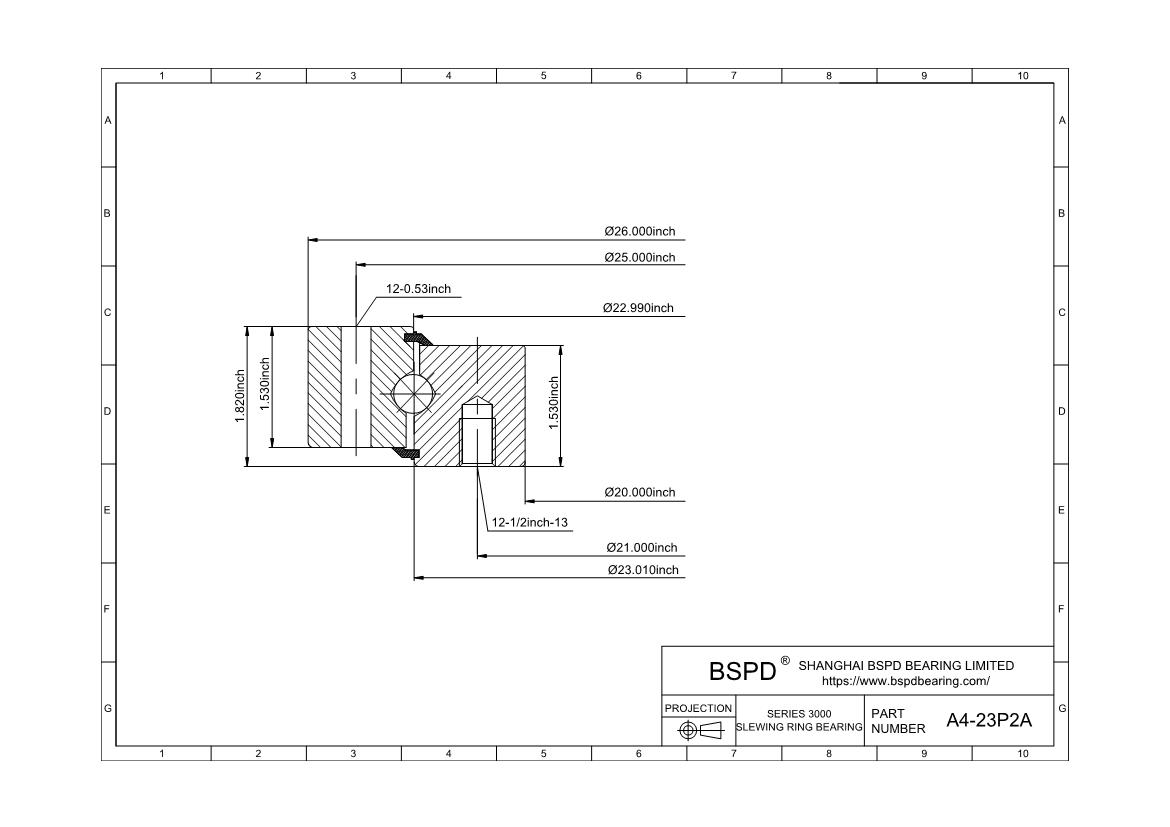

Outline Dimensions(inches)
OD	26
ID	20
OE	-
OI	22.99
IO	23.01
HT	1.82
OH	1.53
IH	1.53
Mounting Holes
OBC	25
OU	0.53
No of OBC Holes	12
IBC	21
IU	1/2-13
No of IBC Holes	12
Hole Figure Style	2
Gear Data
PD	-
DP	-
NO of Teeth	-
Tooth From	-
F	-
Tangential Gear Capacity(lbs)	-
