A19-111E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 103.7"； Outer Diameter: 122.079"； Width (Thickness): 5.04";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A19-111E1 |
| Raceway Moment (ft-lbs) | 8920000 |
| Compressive Thrust(lbs) | 4220000 |
| Weight(lbs) | 3565 |

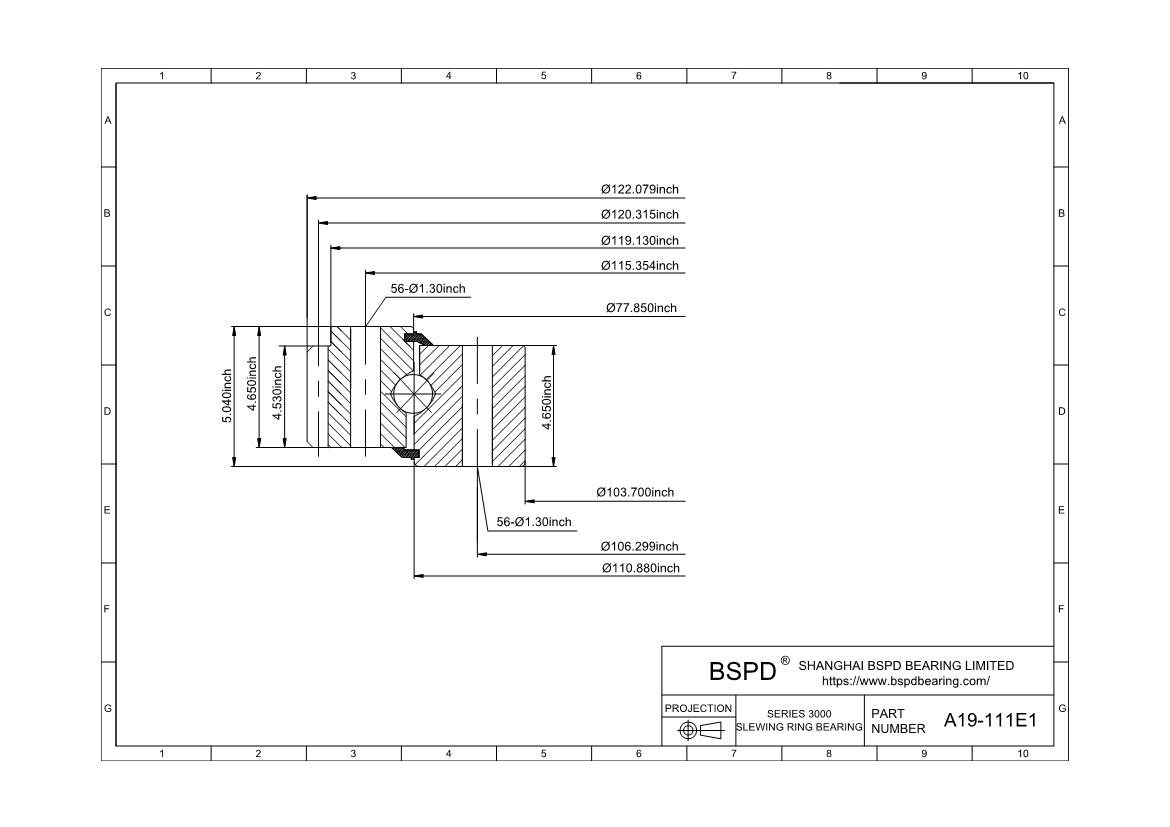

| Outline Dimensions(inches) | |
| OD | 122.079 |
| ID | 103.7 |
| OE | 119.13 |
| OI | 110.78 |
| IO | 110.88 |
| HT | 5.04 |
| OH | 4.65 |
| IH | 4.65 |
| Mounting Holes | |
| OBC | 115.354 |
| OU | 1.3 |
| No of OBC Holes | 56 |
| IBC | 106.299 |
| IU | 1.3 |
| No of IBC Holes | 56 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 120.315 |
| DP | 1.5875 |
| NO of Teeth | 191 |
| Tooth From | 20d, 16 Module |
| F | 4.53 |
| Tangential Gear Capacity(lbs) | 46200 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A19-111E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
