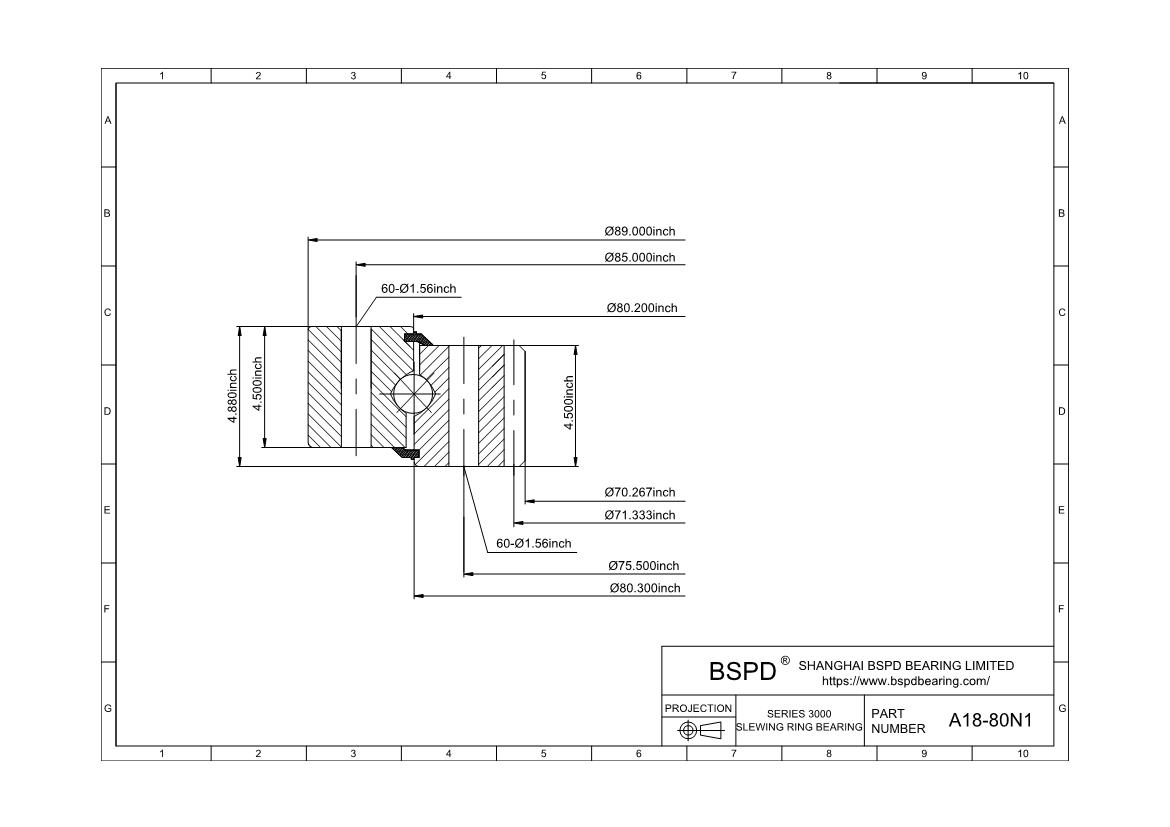

A18-80N1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 70.267"； Outer Diameter: 89.0"； Width (Thickness): 4.88";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-80N1 |
| Raceway Moment (ft-lbs) | 4660000 |
| Compressive Thrust(lbs) | 3040000 |
| Weight(lbs) | 2425 |
| Outline Dimensions(inches) | |
| OD | 89 |
| ID | 70.267 |
| OE | - |
| OI | 80.2 |
| IO | 80.3 |
| HT | 4.88 |
| OH | 4.5 |
| IH | 4.5 |
| Mounting Holes | |
| OBC | 85 |
| OU | 1.56 |
| No of OBC Holes | 60-1 |
| IBC | 75.5 |
| IU | 1.56 |
| No of IBC Holes | 60 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 71.333 |
| DP | 1.5 |
| NO of Teeth | 107 |
| Tooth From | 20d, Stub |
| F | 4.5 |
| Tangential Gear Capacity(lbs) | 67300 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-80N1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
