A18-74E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 65.5"； Outer Diameter: 84.571"； Width (Thickness): 7";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-74E3 |
| Raceway Moment (ft-lbs) | 3940000 |
| Compressive Thrust(lbs) | 2790000 |
| Weight(lbs) | 2940 |

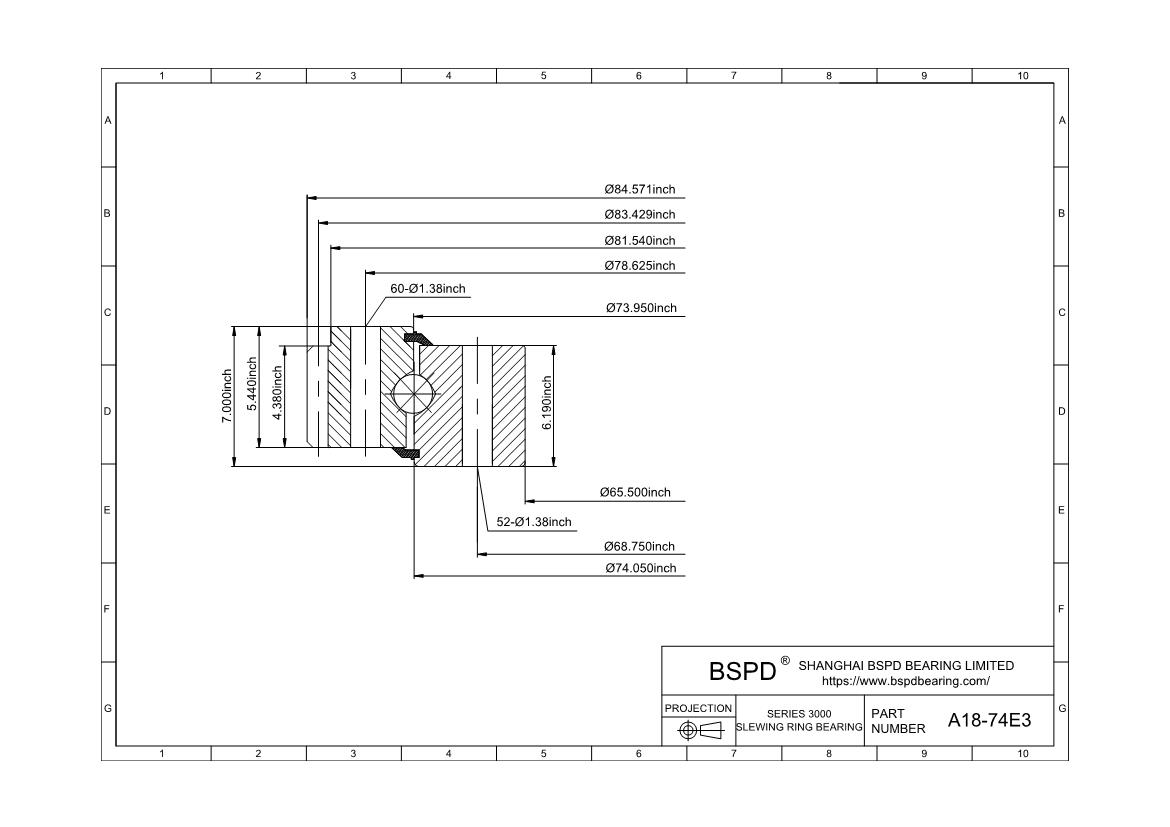

| Outline Dimensions(inches) | |
| OD | 84.571 |
| ID | 65.5 |
| OE | 81.54 |
| OI | 73.95 |
| IO | 74.05 |
| HT | 7 |
| OH | 5.44 |
| IH | 6.19 |
| Mounting Holes | |
| OBC | 78.625 |
| OU | 1.38 |
| No of OBC Holes | 60 |
| IBC | 68.75 |
| IU | 1.38 |
| No of IBC Holes | 52 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 83.429 |
| DP | 1.75 |
| NO of Teeth | 146 |
| Tooth From | 25d,Full Depth |
| F | 4.38 |
| Tangential Gear Capacity(lbs) | 49100 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-74E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
