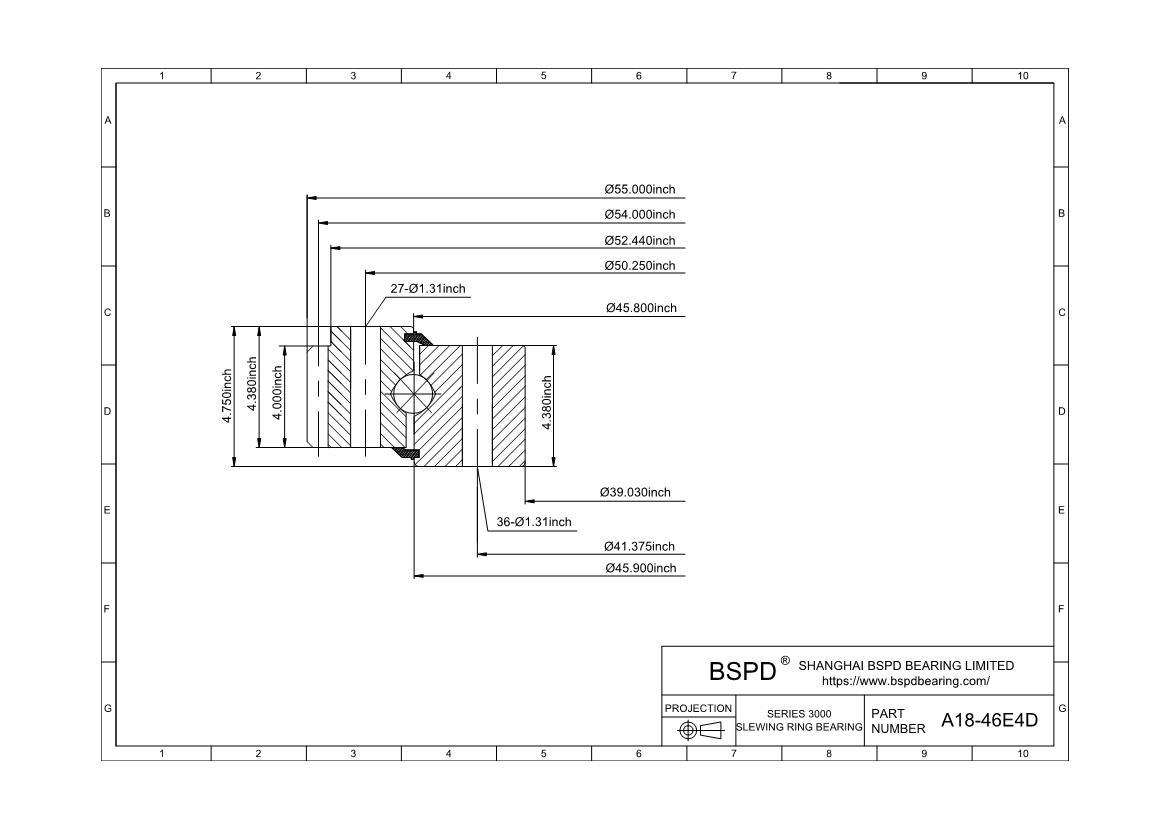

A18-46E4D
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 39.03"； Outer Diameter: 55.0"； Width (Thickness): 4.75";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-46E4D |
| Raceway Moment (ft-lbs) | 1510000 |
| Compressive Thrust(lbs) | 1720000 |
| Weight(lbs) | 1186 |
| Outline Dimensions(inches) | |
| OD | 55 |
| ID | 39.03 |
| OE | 52.44 |
| OI | 45.8 |
| IO | 45.9 |
| HT | 4.75 |
| OH | 4.38 |
| IH | 4.38 |
| Mounting Holes | |
| OBC | 50.25 |
| OU | 1.31 |
| No of OBC Holes | 27 |
| IBC | 41.375 |
| IU | 1.31 |
| No of IBC Holes | 36-1 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 54 |
| DP | 2 |
| NO of Teeth | 108 |
| Tooth From | 20d,Full Depth |
| F | 4 |
| Tangential Gear Capacity(lbs) | 31400 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-46E4D ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
