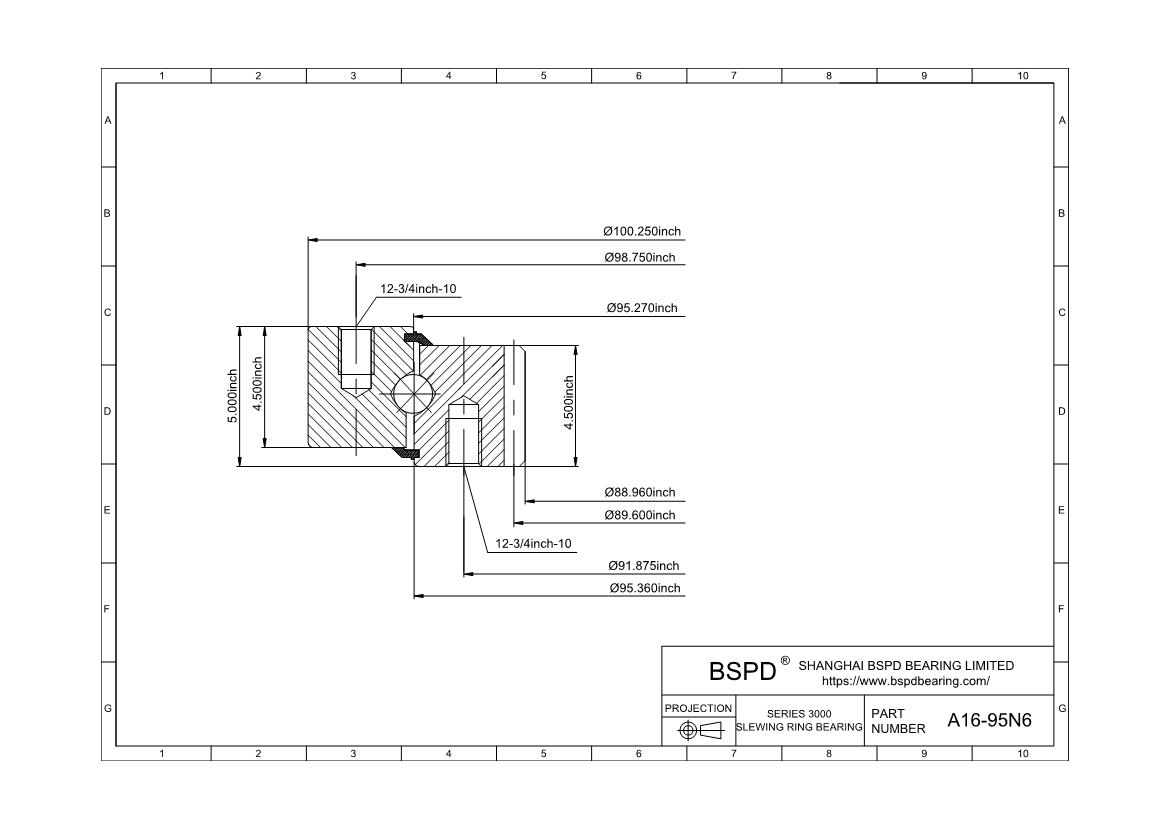

A16-95N6
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 88.96"； Outer Diameter: 100.25"； Width (Thickness): 5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-95N6 |
| Raceway Moment (ft-lbs) | 2630000 |
| Compressive Thrust(lbs) | 1440000 |
| Weight(lbs) | 1825 |
| Outline Dimensions(inches) | |
| OD | 100.25 |
| ID | 88.96 |
| OE | - |
| OI | 95.27 |
| IO | 95.36 |
| HT | 5 |
| OH | 4.5 |
| IH | 4.5 |
| Mounting Holes | |
| OBC | 98.75 |
| OU | 3/4-10 |
| No of OBC Holes | 12 |
| IBC | 91.875 |
| IU | 3/4-10 |
| No of IBC Holes | 12 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 89.6 |
| DP | 2.5 |
| NO of Teeth | 224 |
| Tooth From | 20d, Stub |
| F | 4.5 |
| Tangential Gear Capacity(lbs) | 38100 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-95N6 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
