A16-79P1A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 72.75"； Outer Diameter: 84.75"； Width (Thickness): 4.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-79P1A |
| Raceway Moment (ft-lbs) | 4470000 |
| Compressive Thrust(lbs) | 2980000 |
| Weight(lbs) | 1510 |

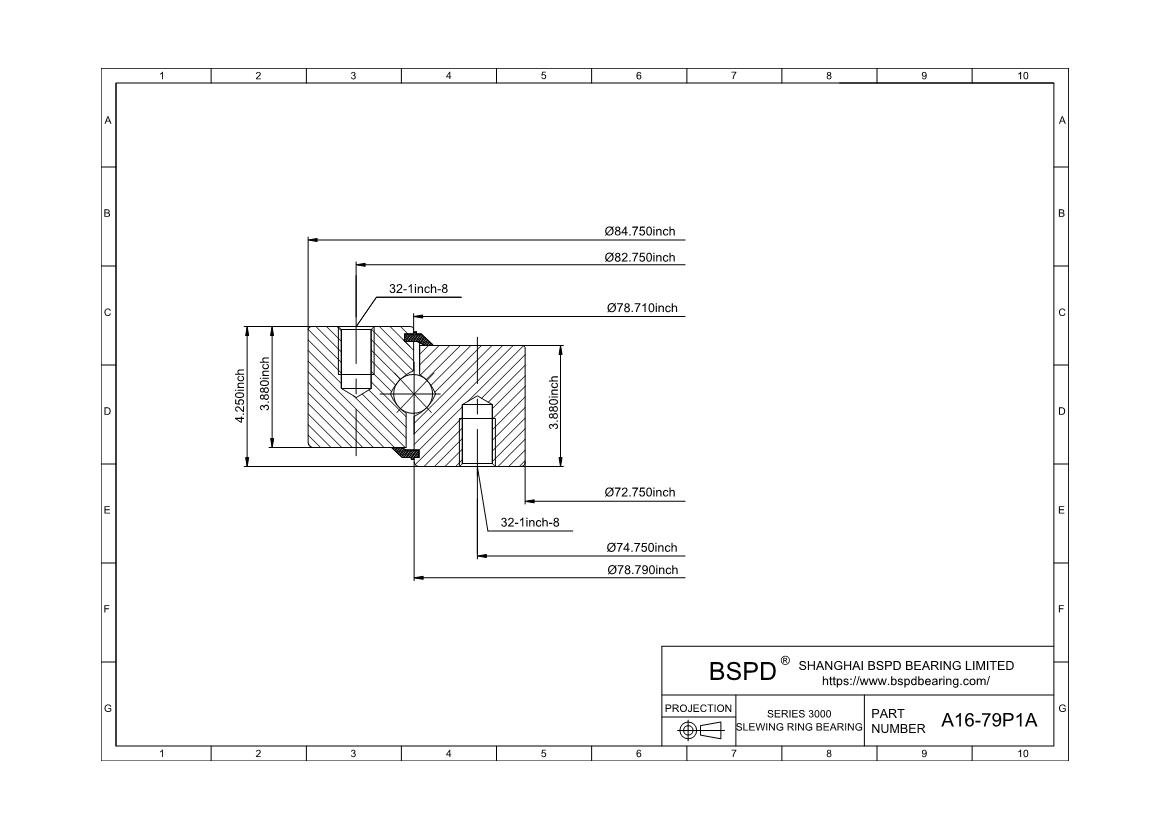

| Outline Dimensions(inches) | |
| OD | 84.75 |
| ID | 72.75 |
| OE | - |
| OI | 78.71 |
| IO | 78.79 |
| HT | 4.25 |
| OH | 3.88 |
| IH | 3.88 |
| Mounting Holes | |
| OBC | 82.75 |
| OU | 1-8 |
| No of OBC Holes | 32 |
| IBC | 74.75 |
| IU | 1-8 |
| No of IBC Holes | 32 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-79P1A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
