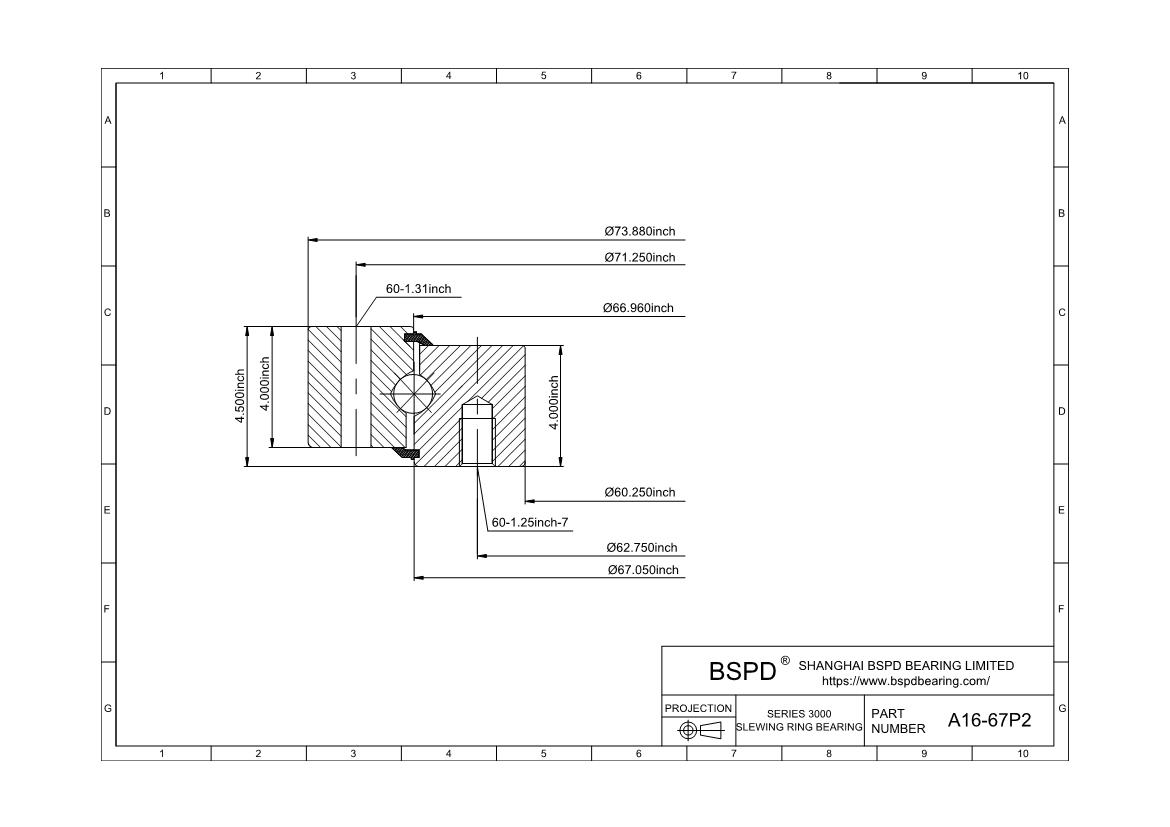

A16-67P2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 60.25"； Outer Diameter: 73.88"； Width (Thickness): 4.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-67P2 |
| Raceway Moment (ft-lbs) | 3230000 |
| Compressive Thrust(lbs) | 2530000 |
| Weight(lbs) | 1442 |
| Outline Dimensions(inches) | |
| OD | 73.88 |
| ID | 60.25 |
| OE | - |
| OI | 66.96 |
| IO | 67.05 |
| HT | 4.5 |
| OH | 4 |
| IH | 4 |
| Mounting Holes | |
| OBC | 71.25 |
| OU | 1.31 |
| No of OBC Holes | 60-1 |
| IBC | 62.75 |
| IU | 1.25-7 |
| No of IBC Holes | 60 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-67P2 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
