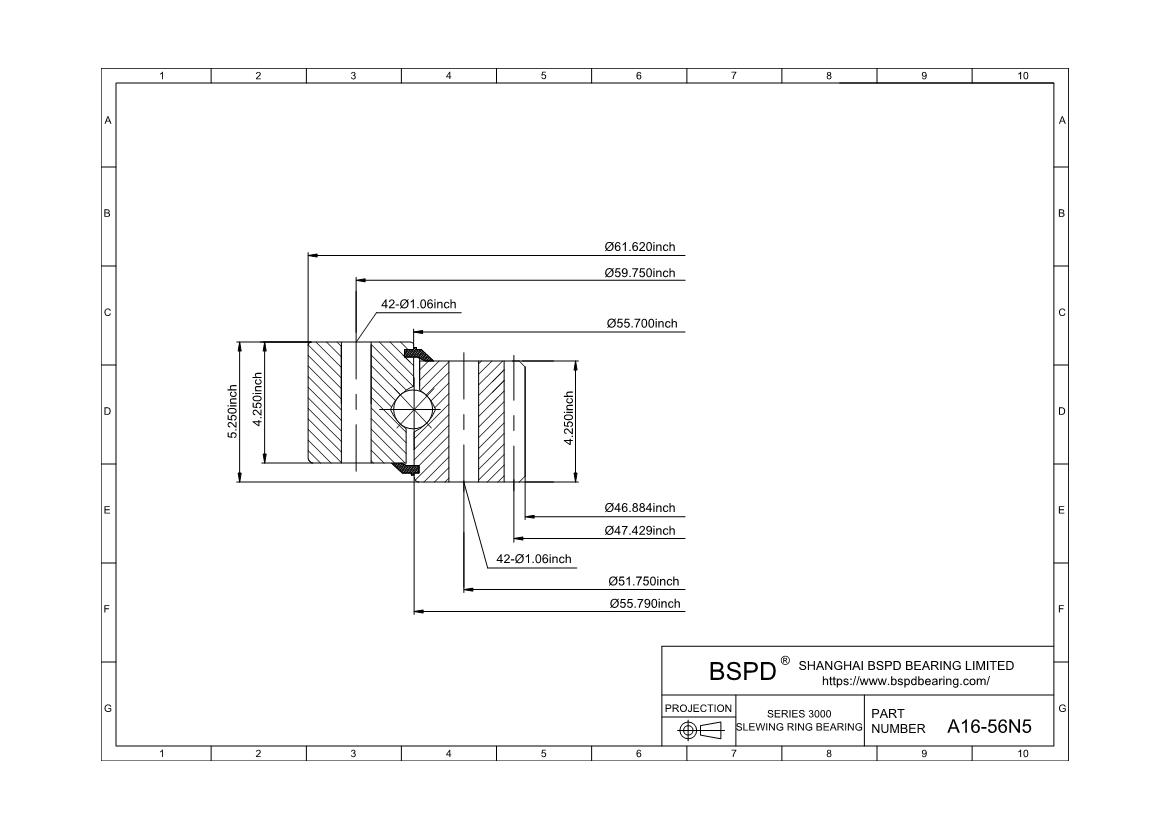

A16-56N5
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 46.884"； Outer Diameter: 61.62"； Width (Thickness): 5.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-56N5 |
| Raceway Moment (ft-lbs) | 2230000 |
| Compressive Thrust(lbs) | 2100000 |
| Weight(lbs) | 1295 |
| Outline Dimensions(inches) | |
| OD | 61.62 |
| ID | 46.884 |
| OE | - |
| OI | 55.7 |
| IO | 55.79 |
| HT | 5.25 |
| OH | 4.5 |
| IH | 4.25 |
| Mounting Holes | |
| OBC | 59.75 |
| OU | 1.06 |
| No of OBC Holes | 42 |
| IBC | 51.75 |
| IU | 1.06 |
| No of IBC Holes | 42 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 47.429 |
| DP | 1.75 |
| NO of Teeth | 83 |
| Tooth From | 25d, Full Depth |
| F | 4.25 |
| Tangential Gear Capacity(lbs) | 48000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-56N5 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
