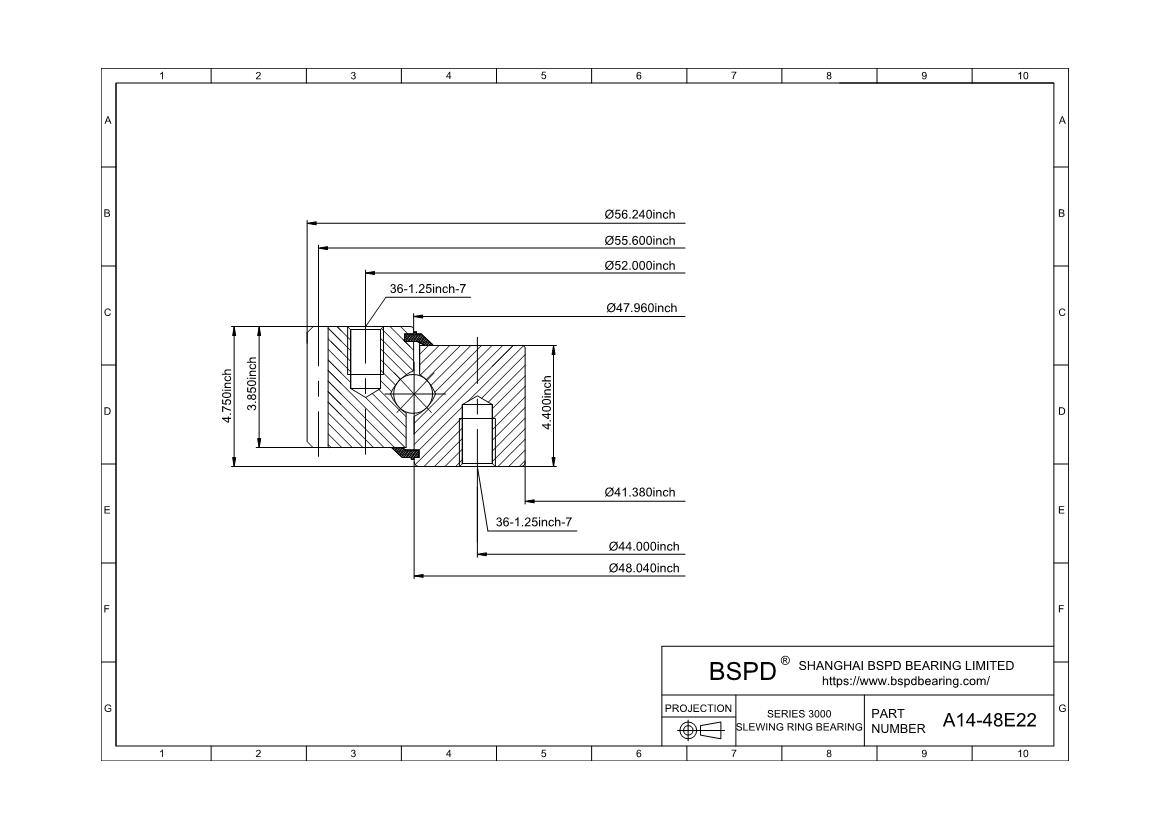

A14-48E22
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 41.38"； Outer Diameter: 56.24"； Width (Thickness): 4.75";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-48E22 |
| Raceway Moment (ft-lbs) | 1600000 |
| Compressive Thrust(lbs) | 1750000 |
| Weight(lbs) | 1170 |
| Outline Dimensions(inches) | |
| OD | 56.24 |
| ID | 41.38 |
| OE | - |
| OI | 47.96 |
| IO | 48.04 |
| HT | 4.75 |
| OH | 3.85 |
| IH | 4.4 |
| Mounting Holes | |
| OBC | 52 |
| OU | 1.25-7 |
| No of OBC Holes | 36 |
| IBC | 44 |
| IU | 1.25-7 |
| No of IBC Holes | 36 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 55.6 |
| DP | 2.5 |
| NO of Teeth | 139 |
| Tooth From | 20d, Stub |
| F | 3.85 |
| Tangential Gear Capacity(lbs) | 27800 |
