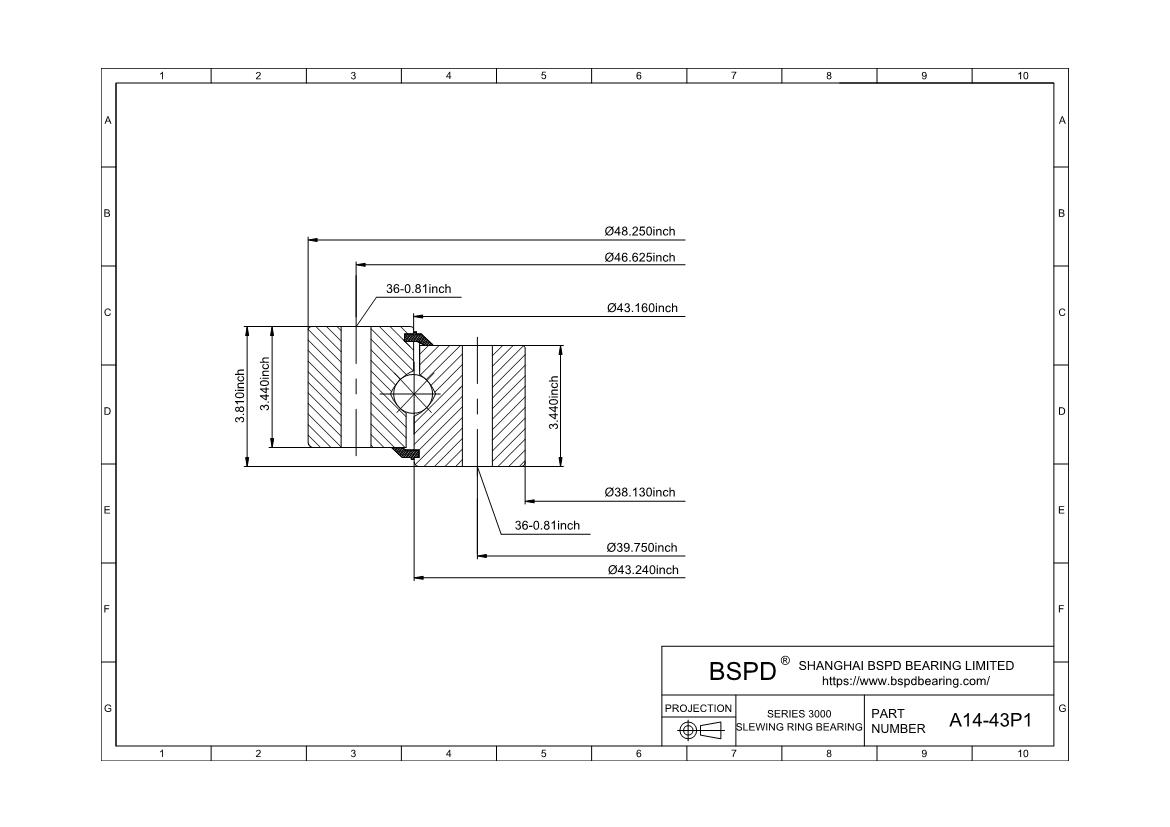

A14-43P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 38.13"； Outer Diameter: 48.25"； Width (Thickness): 3.81";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-43P1 |
| Raceway Moment (ft-lbs) | 1270000 |
| Compressive Thrust(lbs) | 1540000 |
| Weight(lbs) | 605 |
| Outline Dimensions(inches) | |
| OD | 48.25 |
| ID | 38.13 |
| OE | - |
| OI | 43.16 |
| IO | 43.24 |
| HT | 3.81 |
| OH | 3.44 |
| IH | 3.44 |
| Mounting Holes | |
| OBC | 46.625 |
| OU | 0.81 |
| No of OBC Holes | 36 |
| IBC | 39.75 |
| IU | 0.81 |
| No of IBC Holes | 36 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-43P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
