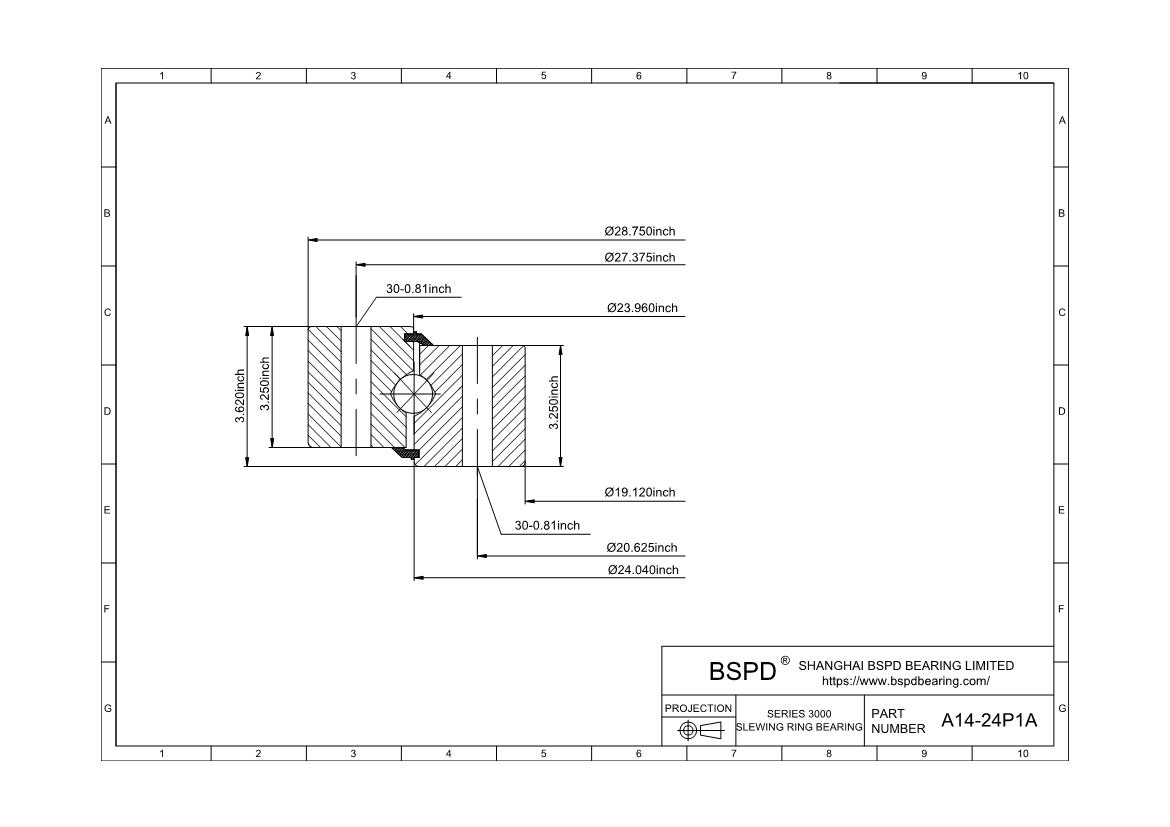

A14-24P1A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 19.12"； Outer Diameter: 28.75"； Width (Thickness): 3.62";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-24P1A |
| Raceway Moment (ft-lbs) | 228000 |
| Compressive Thrust(lbs) | 499000 |
| Weight(lbs) | 294 |
| Outline Dimensions(inches) | |
| OD | 28.75 |
| ID | 19.12 |
| OE | - |
| OI | 23.96 |
| IO | 24.04 |
| HT | 3.62 |
| OH | 3.25 |
| IH | 3.25 |
| Mounting Holes | |
| OBC | 27.375 |
| OU | 0.81 |
| No of OBC Holes | 30 |
| IBC | 20.625 |
| IU | 0.81 |
| No of IBC Holes | 30-1 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-24P1A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
