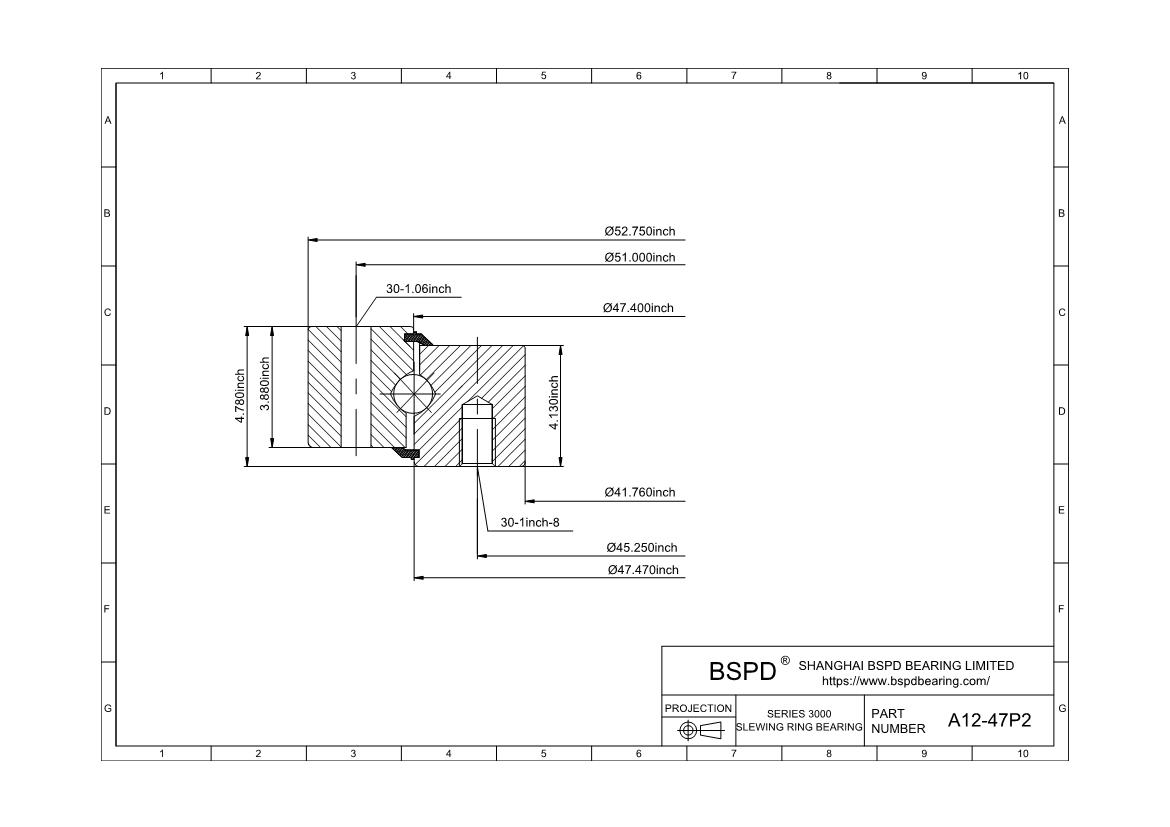

A12-47P2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 41.76"； Outer Diameter: 52.75"； Width (Thickness): 4.78";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-47P2 |
| Raceway Moment (ft-lbs) | 1230000 |
| Compressive Thrust(lbs) | 1360000 |
| Weight(lbs) | 824 |
| Outline Dimensions(inches) | |
| OD | 52.75 |
| ID | 41.76 |
| OE | - |
| OI | 47.4 |
| IO | 47.47 |
| HT | 4.78 |
| OH | 3.88 |
| IH | 4.13 |
| Mounting Holes | |
| OBC | 51 |
| OU | 1.06 |
| No of OBC Holes | 30 |
| IBC | 45.25 |
| IU | 1-8 |
| No of IBC Holes | 30 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-47P2 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
