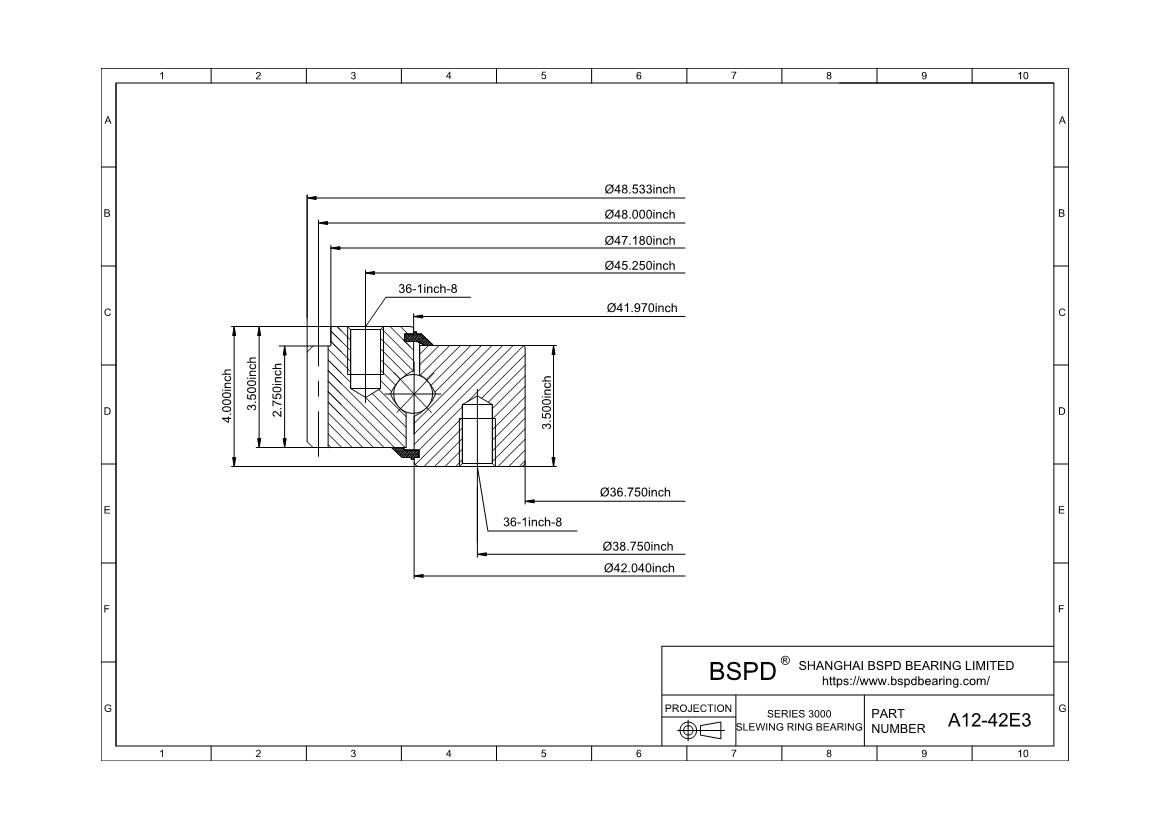

A12-42E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 36.75"； Outer Diameter: 48.533"； Width (Thickness): 4";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-42E3 |
| Raceway Moment (ft-lbs) | 953000 |
| Compressive Thrust(lbs) | 1190000 |
| Weight(lbs) | 688 |
| Outline Dimensions(inches) | |
| OD | 48.533 |
| ID | 36.75 |
| OE | 47.18 |
| OI | 41.97 |
| IO | 42.04 |
| HT | 4 |
| OH | 3.5 |
| IH | 3.5 |
| Mounting Holes | |
| OBC | 45.25 |
| OU | 1-8 |
| No of OBC Holes | 36 |
| IBC | 38.75 |
| IU | 1-8 |
| No of IBC Holes | 42-1 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 48 |
| DP | 3 |
| NO of Teeth | 144 |
| Tooth From | 20d, Stub |
| F | 2.75 |
| Tangential Gear Capacity(lbs) | 17600 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-42E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
