A12-34P2B
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 29.65"； Outer Diameter: 39.8"； Width (Thickness): 3.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-34P2B |
| Raceway Moment (ft-lbs) | 413000 |
| Compressive Thrust(lbs) | 635000 |
| Weight(lbs) | 426 |

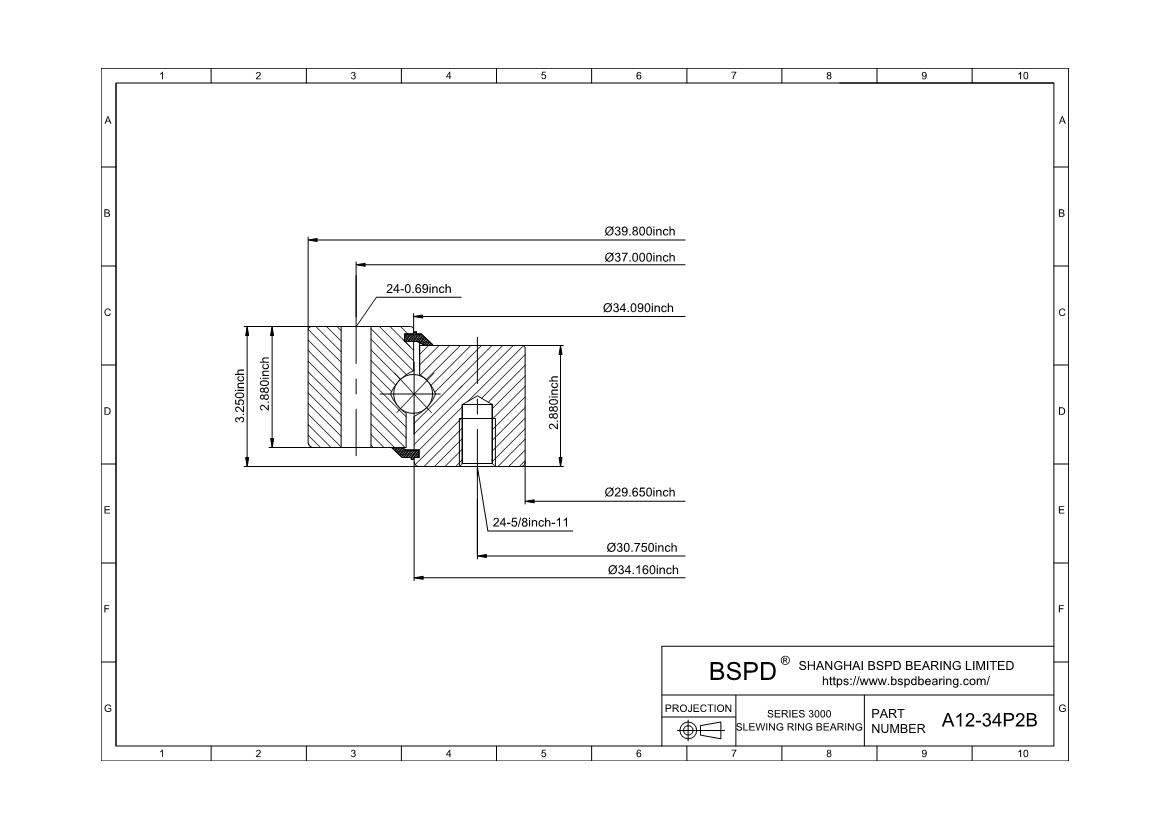

| Outline Dimensions(inches) | |
| OD | 39.8 |
| ID | 29.65 |
| OE | - |
| OI | 34.09 |
| IO | 34.16 |
| HT | 3.25 |
| OH | 2.88 |
| IH | 2.88 |
| Mounting Holes | |
| OBC | 37 |
| OU | 0.69 |
| No of OBC Holes | 24 |
| IBC | 30.75 |
| IU | 5/8-11 |
| No of IBC Holes | 24 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-34P2B ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
