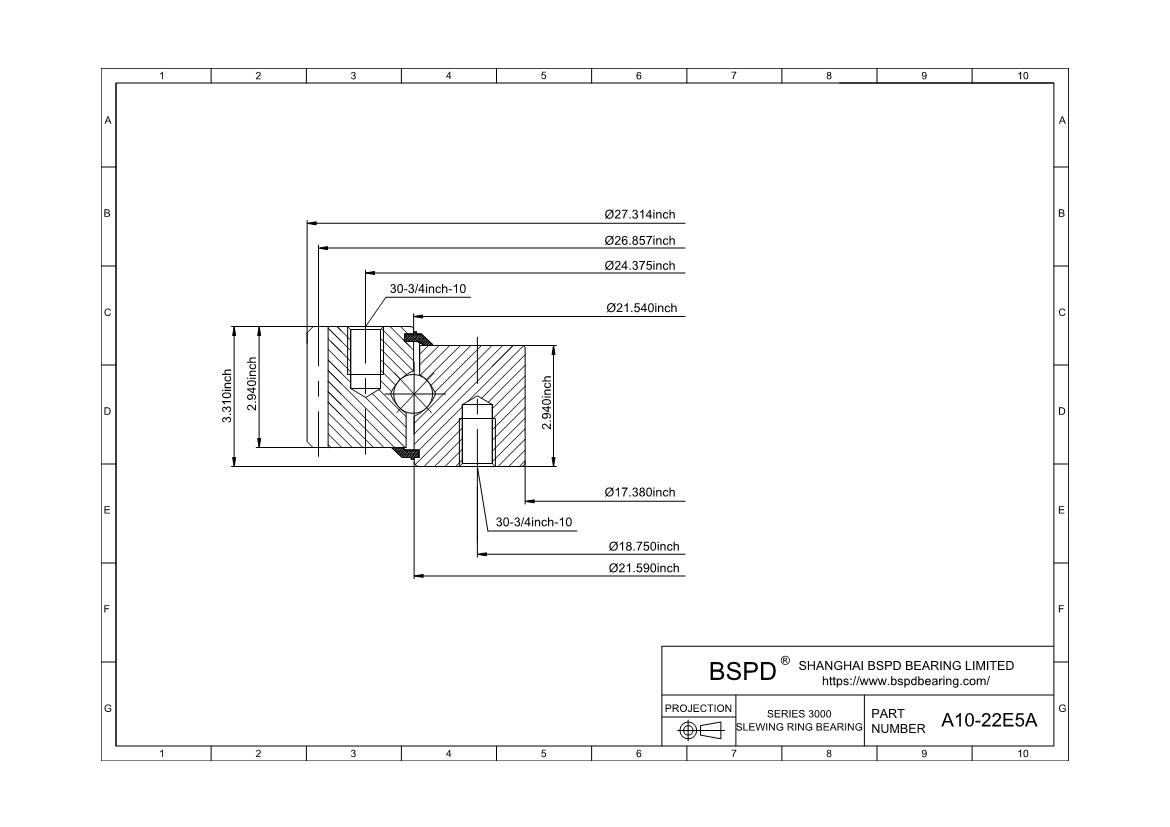

A10-22E5A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 17.38"； Outer Diameter: 27.314"； Width (Thickness): 3.31";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A10-22E5A |
| Raceway Moment (ft-lbs) | 234000 |
| Compressive Thrust(lbs) | 570000 |
| Weight(lbs) | 240 |
| Outline Dimensions(inches) | |
| OD | 27.314 |
| ID | 17.38 |
| OE | - |
| OI | 21.54 |
| IO | 21.59 |
| HT | 3.31 |
| OH | 2.94 |
| IH | 2.94 |
| Mounting Holes | |
| OBC | 24.375 |
| OU | 3/4-10 |
| No of OBC Holes | 30 |
| IBC | 18.75 |
| IU | 3/4-10 |
| No of IBC Holes | 30-1 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 26.857 |
| DP | 3.5 |
| NO of Teeth | 94 |
| Tooth From | 20d,Stub |
| F | 2.94 |
| Tangential Gear Capacity(lbs) | 14800 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A10-22E5A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
