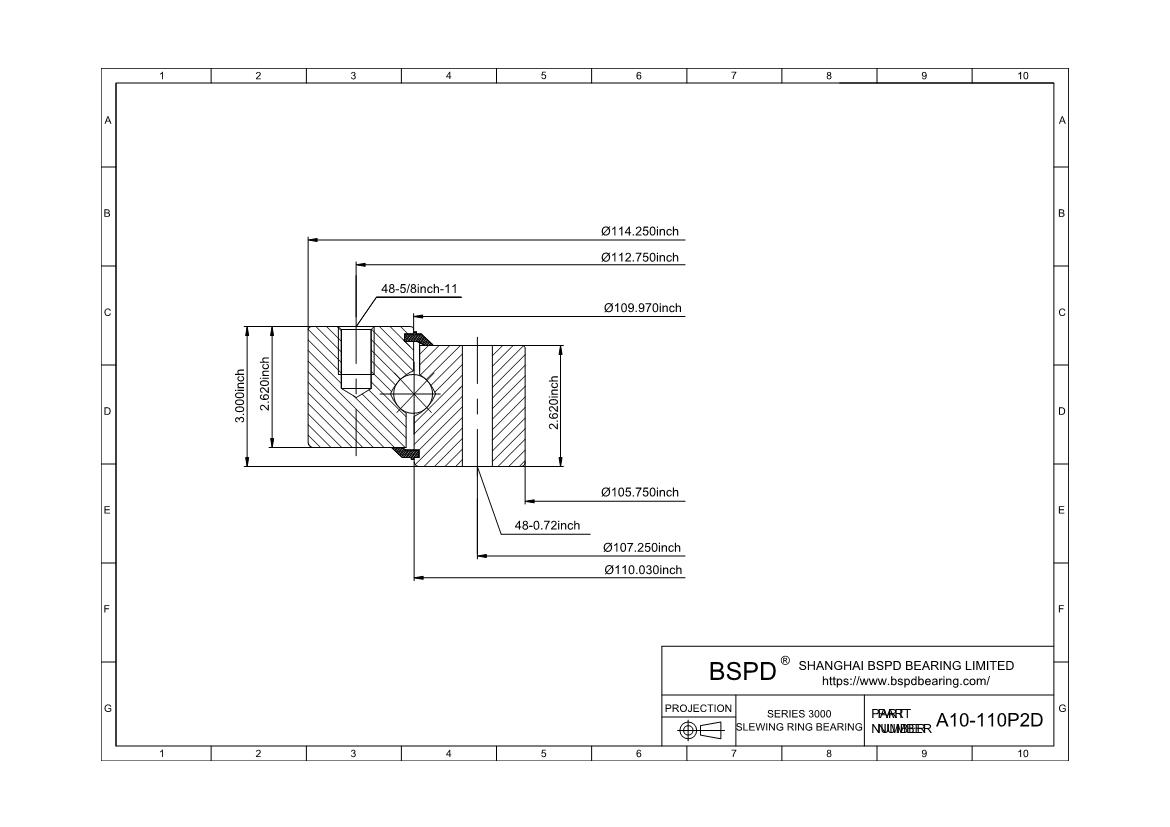

A10-110P2D
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 105.75"； Outer Diameter: 114.25"； Width (Thickness): 3";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A10-110P2D |
| Raceway Moment (ft-lbs) | 4000000 |
| Compressive Thrust(lbs) | 1910000 |
| Weight(lbs) | 981 |
| Outline Dimensions(inches) | |
| OD | 114.25 |
| ID | 105.75 |
| OE | - |
| OI | 109.97 |
| IO | 110.03 |
| HT | 3 |
| OH | 2.62 |
| IH | 2.62 |
| Mounting Holes | |
| OBC | 112.75 |
| OU | 5/8-11 |
| No of OBC Holes | 48 |
| IBC | 84.449 |
| IU | 1.3 |
| No of IBC Holes | 20 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
