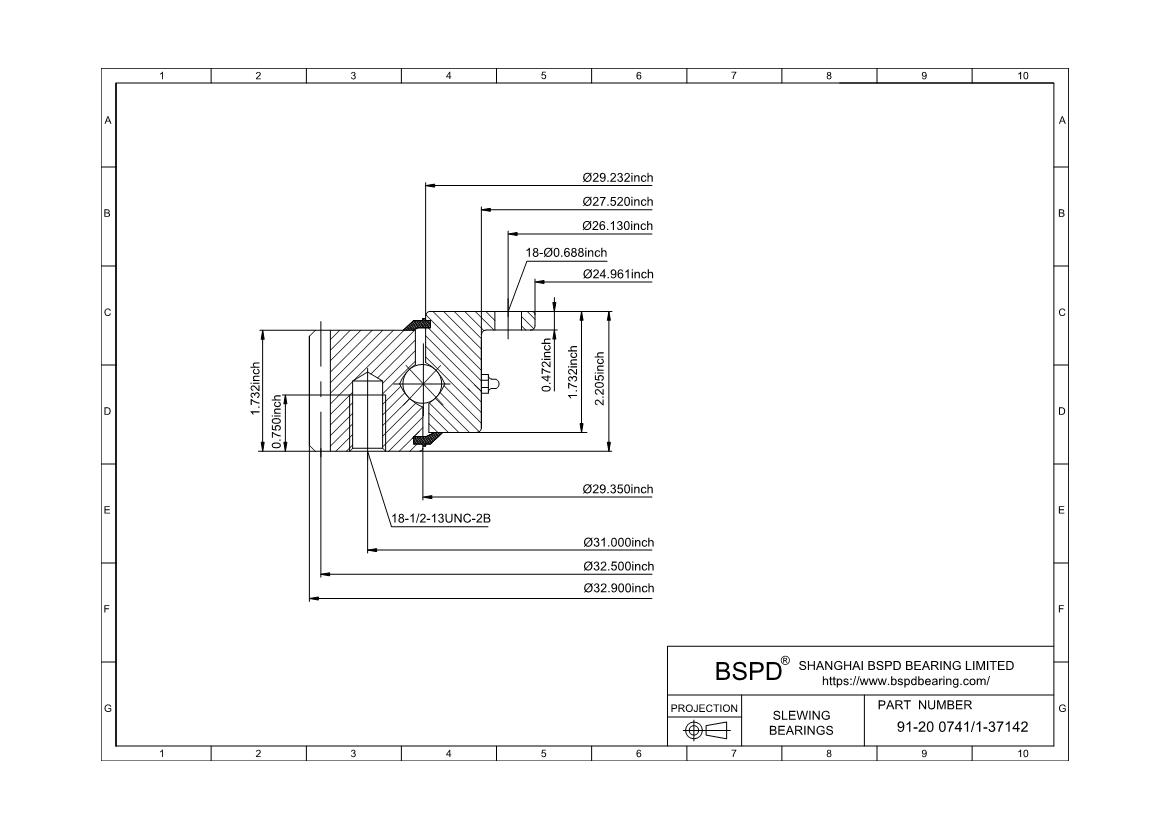

IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 24.961； Outer Diameter: 32.9； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 91-20 0741/1-37142 |
| Gear | External toothed |
| Geometry | |
| Weight(G) | 130 |
| Outside diameter outer ring(Da) | 32.9 |
| Inside diameter inner ring(di) | 24.961 |
| inside diameter outer ring(Di) | 29.350 |
| Outside diameter inner ring (da) | 29.232 |
| Diameter outer ring (a) | |
| Diameter inner ring (b) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 31 |
| Number Holes in Outer Ring (na) | 18 |
| Pitch circle diameter Inner Ring (Li) | 26.13 |
| Number Holes in Inner Ring (ni) | 18 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 32.5 |
| Diametral Pitch (Pd) | 4 |
| Number of Teeth (Z2) | 130 |
| Permissible tooth force (fz norm)(lbs) | 2540 |
| Maximum perissible tooth force (fz max)(lbs) | 5800 |
| Load Rating | |
| Static Co rad(lbs) | 47659 |
| Static Co Max(lbs) | 111505 |
| Dynamic C rad(lbs) | 43613 |
| Dynamic C Max(lbs) | 43838 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 91-20 0741/1-37142 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
