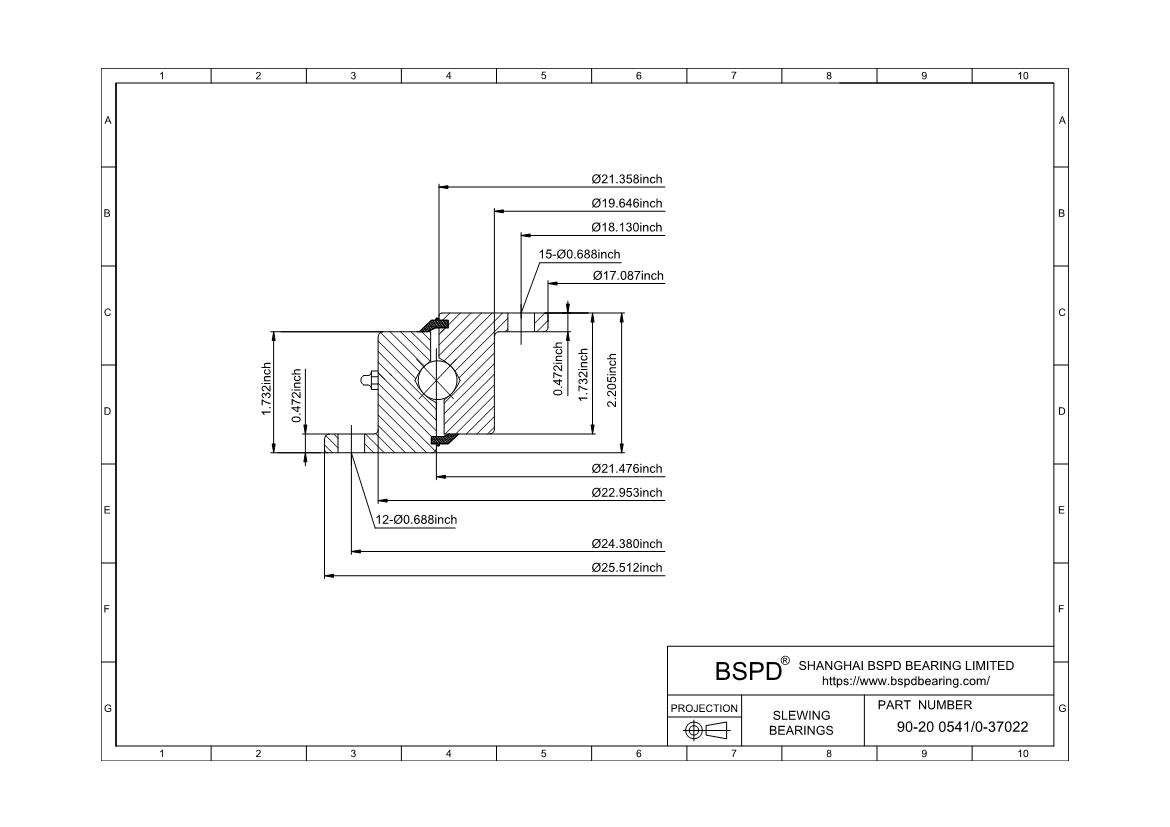

90-20 0541/0-37022
IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 17.087； Outer Diameter: 25.512； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 90-20 0541/0-37022 |
| Gear | Untoothed |
| Geometry | |
| Weight(G) | 70 |
| Outside diameter outer ring(Da) | 25.512 |
| Inside diameter inner ring(di) | 17.087 |
| inside diameter outer ring(Di) | 21.476 |
| Outside diameter inner ring (da) | 21.358 |
| Diameter outer ring (a) | |
| Diameter inner ring (b) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 24.38 |
| Number Holes in Outer Ring (na) | 12 |
| Pitch circle diameter Inner Ring (Li) | 18.13 |
| Number Holes in Inner Ring (ni) | 15 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | |
| Diametral Pitch (Pd) | |
| Number of Teeth (Z2) | |
| Permissible tooth force (fz norm)(lbs) | |
| Maximum perissible tooth force (fz max)(lbs) | |
| Load Rating | |
| Static Co rad(lbs) | 34845 |
| Static Co Max(lbs) | 81381 |
| Dynamic C rad(lbs) | 38892 |
| Dynamic C Max(lbs) | 39117 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 90-20 0541/0-37022 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
