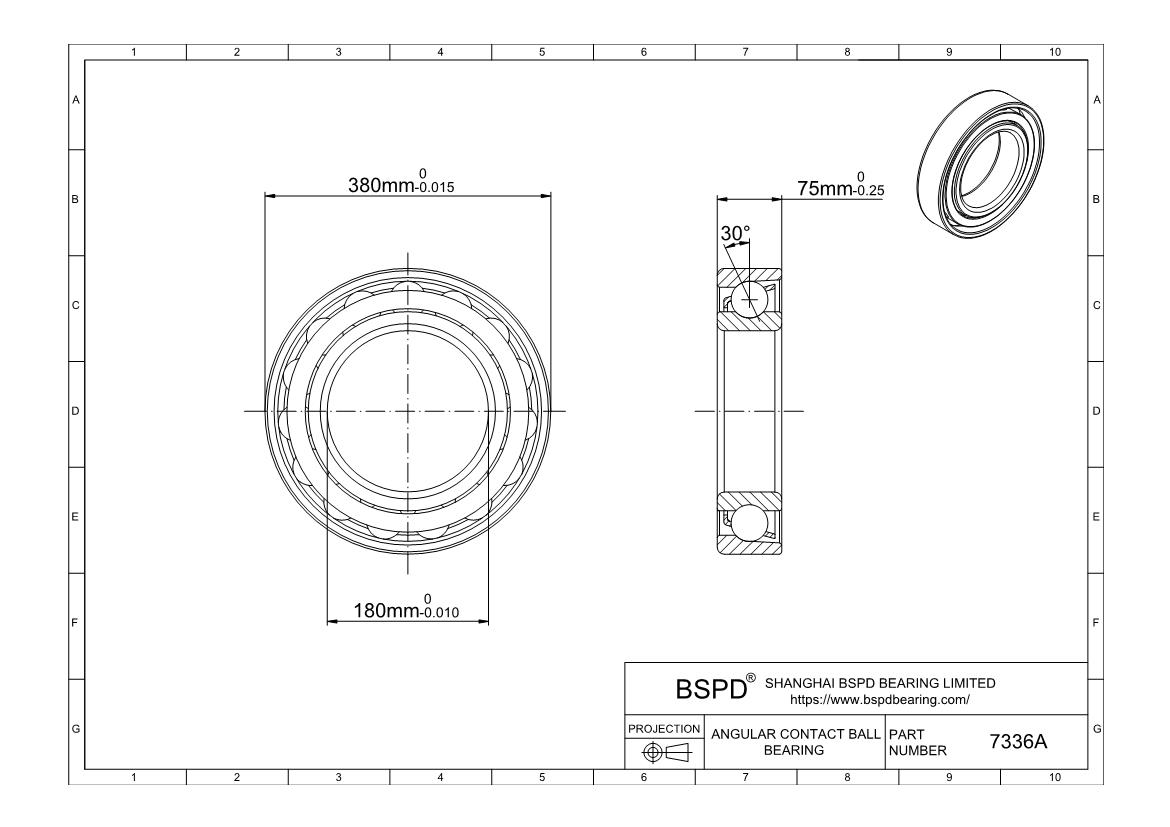

7336A
Single Row Angular Contact Ball Bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 380 mm； Width (Thickness): 75 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Construction | One |
| Single Row/Double Row | Single |
| Seal Type | Open |
| Precision Rating | P4 (ABEC-7) |
| Contact Angle | 30 |
| Part Number | 7336A |
| Bore Dia (d) | 180 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia (D) | 380 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width (B) | 75 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | TYN (ball guided polyamide resin cage) |
| TR (outer ring guided polyamide resin cage) | |
| W ( steel plate punching) | |
| T85 (polyamide 46 resin) | |
| Dynamic Load Rating (Cr) (KN) | 410 |
| Static Load Rating (Cor) (KN) | 535 |
| Max Speed (Grease) (RPM) | 1500 |
| Max Speed (Oil) (RPM) | 2000 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Mass(Kg) | 42.1 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Angular Contact Ball Bearings 7336A ? Single Row Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
