7219BEAT85
Single Row Angular Contact Ball Bearings

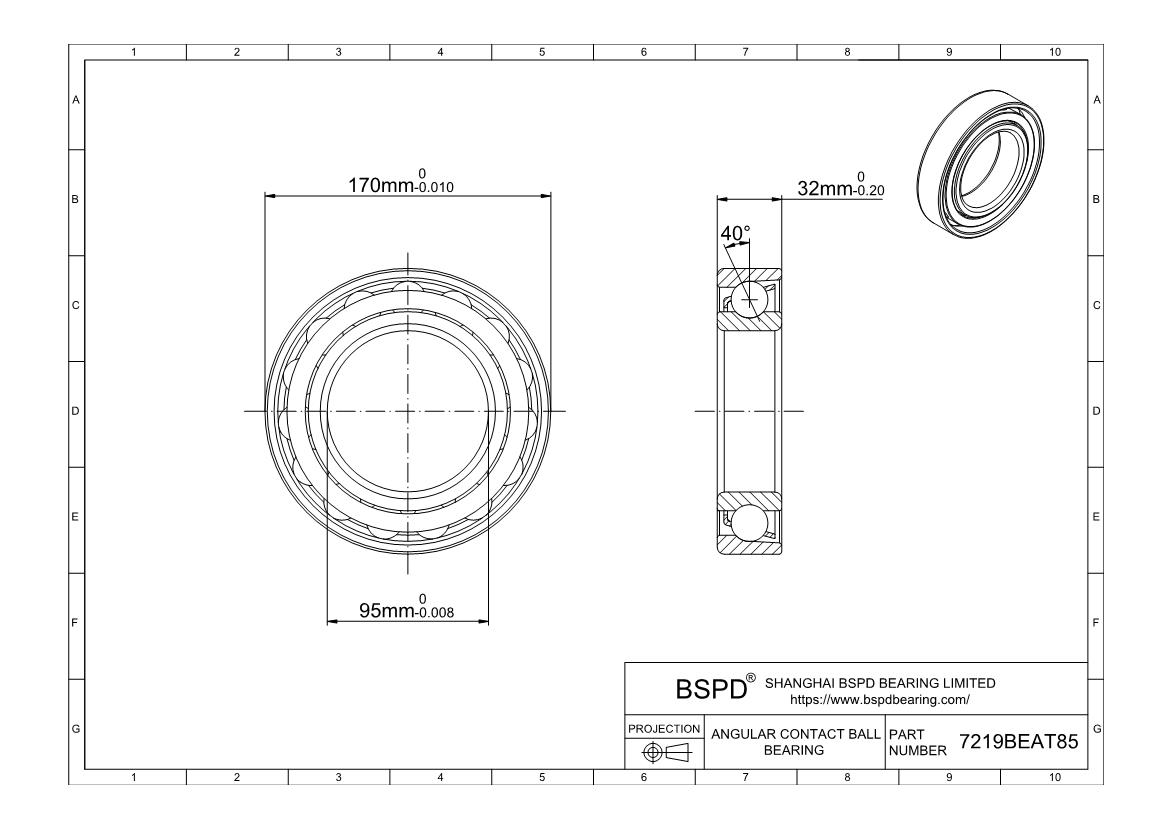

Dimensions: Bore (Inner) Diameter: 95 mm； Outer Diameter: 170 mm； Width (Thickness): 32 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Construction | One |
| Single Row/Double Row | Single |
| Seal Type | Open |
| Precision Rating | P4 (ABEC-7) |
| Contact Angle | 40 |
| Part Number | 7219BEAT85 |
| Bore Dia (d) | 95 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia (D) | 170 mm |
| Outer Dia Tolerance | -0.01mm to 0 |
| Width (B) | 32 mm |
| Width Tolerance | -0.2mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | TYN (ball guided polyamide resin cage) |
| TR (outer ring guided polyamide resin cage) | |
| W ( steel plate punching) | |
| T85 (polyamide 46 resin) | |
| Dynamic Load Rating (Cr) (KN) | 130 |
| Static Load Rating (Cor) (KN) | 107 |
| Max Speed (Grease) (RPM) | 3400 |
| Max Speed (Oil) (RPM) | 5000 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Mass(Kg) | 2.67 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
