71832 CD/P4 High Speed Angular Contact Ball Bearings

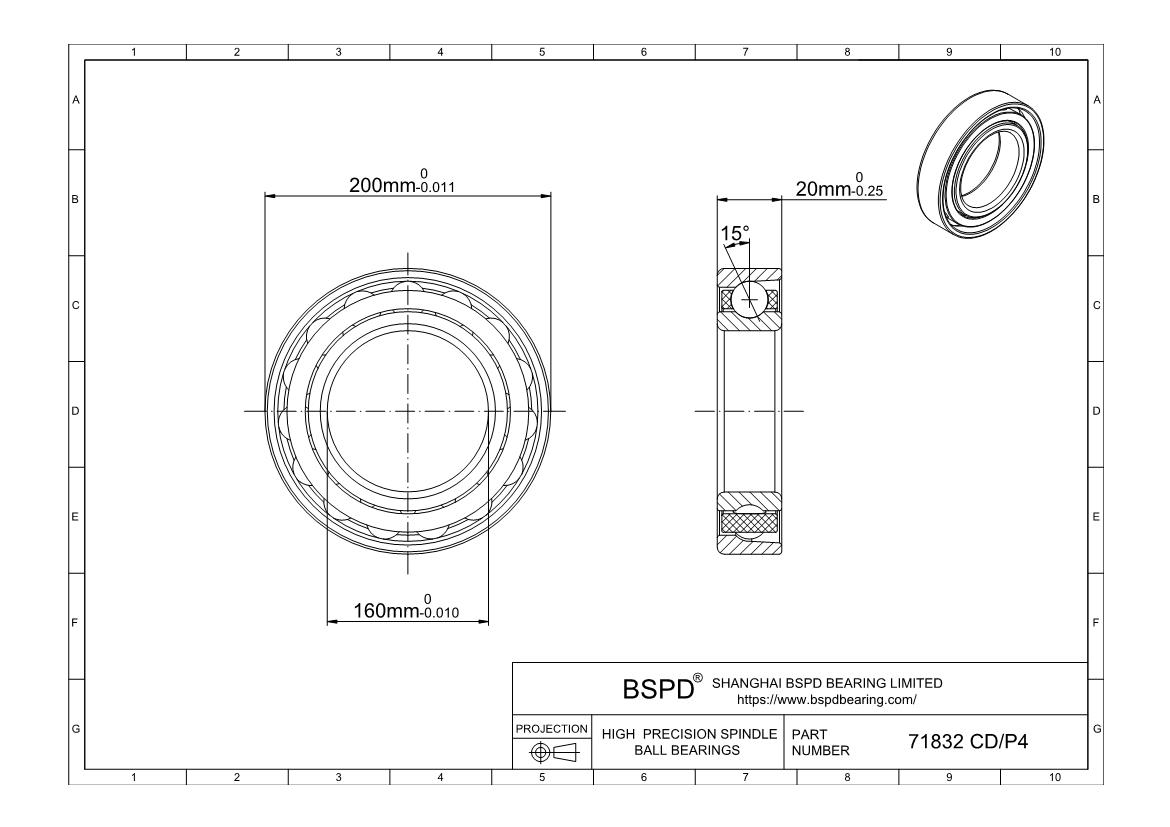

Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 200 mm； Width (Thickness): 20 mm;

71832 CD/P4
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7)
Contact Angle 15
Part Number 71832 CD/P4
NSK Code 7832CTRP4
Arrangement DB Set of two bearings arranged back-to-back
DF Set of two bearings arranged face-to-face >
DT Set of two bearings arranged in tandem
DG Set of two bearings for universal matching
Bore Dia (d) 160 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia (D) 200 mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 20 mm
Width Tolerance -0.25mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Polyamide
Dynamic Load Rating (Cr) (KN) 54
Static Load Rating (Cor) (KN) 78
Max Speed (Grease) (RPM) 5600
Max Speed (Oil) (RPM) 8500
Preload Extra Light Preload
Light Preload
Medium Preload
Heavy Preload
Special Preload
Special Axial Clearance
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 1230
RoHS Compliant
71832 CD/P4
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Super Precision Bearings 71832 CD/P4 ? High Speed Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
