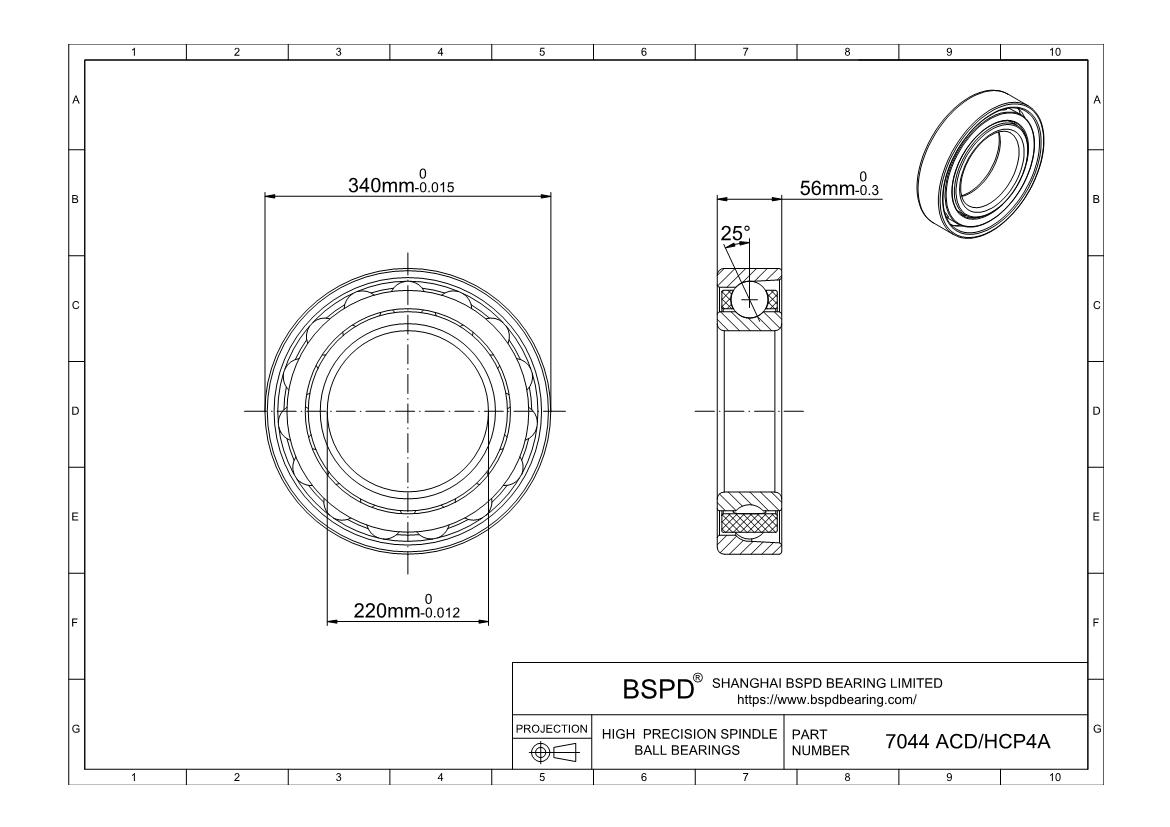

7044 ACD/HCP4A
High Speed Angular Contact Ball Bearings
Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 340 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Single Row/Double Row | Single |
| Seal Type | Open |
| Precision Rating | P4 (ABEC-7) |
| Contact Angle | 25 |
| Part Number | 7044 ACD/HCP4A |
| NSK Code | 7044A5SN24TRP4 |
| Arrangement | DB Set of two bearings arranged back-to-back |
| DF Set of two bearings arranged face-to-face > | |
| DT Set of two bearings arranged in tandem | |
| DG Set of two bearings for universal matching | |
| Bore Dia (d) | 220 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia (D) | 340 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width (B) | 56 mm |
| Width Tolerance | -0.3mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | Ceramic Ball Si3N4 |
| Cage Material | Polyamide |
| Dynamic Load Rating (Cr) (KN) | 319 |
| Static Load Rating (Cor) (KN) | 440 |
| Max Speed (Grease) (RPM) | 4500 |
| Max Speed (Oil) (RPM) | 6700 |
| Preload | Extra Light Preload |
| Light Preload | |
| Medium Preload | |
| Heavy Preload | |
| Special Preload | |
| Special Axial Clearance | |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Weight (grams) | 13200 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Super Precision Bearings 7044 ACD/HCP4A ? High Speed Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
