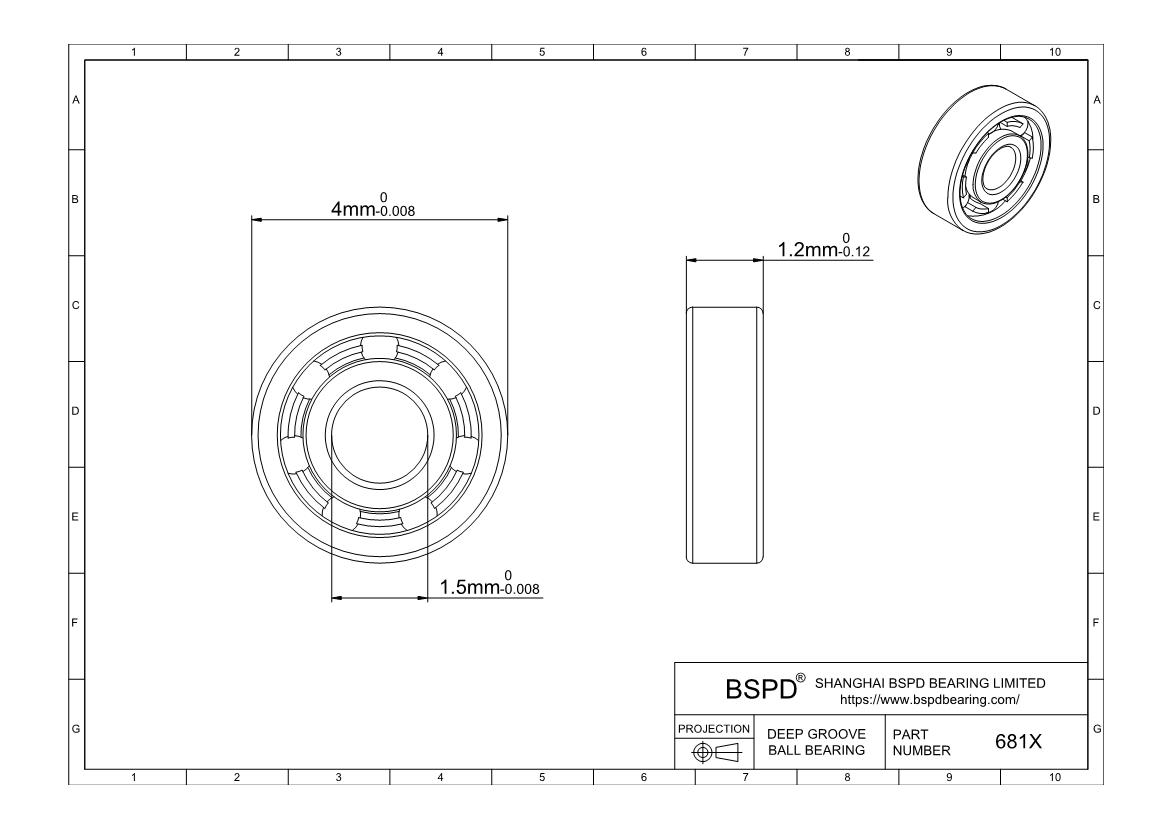

681X Miniature Bearing
Dimensions: Bore (Inner) Diameter: 1.5 mm； Outer Diameter: 4 mm； Width (Thickness): 1.2 mm;

681X
Slewing Bearings of similar size
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number 681x
For Shaft Diameter 1.5mm
Bore Dia (d) 1.5mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 4mm
Outer Dia (D) 4mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 1.2mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 95
Static Load Rating (Cor) (Newtons) 26
Max Speed (Grease) (X1000 RPM) 100
Max Speed (Oil) (X1000 RPM)  120
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 0.6000mm
Weight (grams) 0.1
