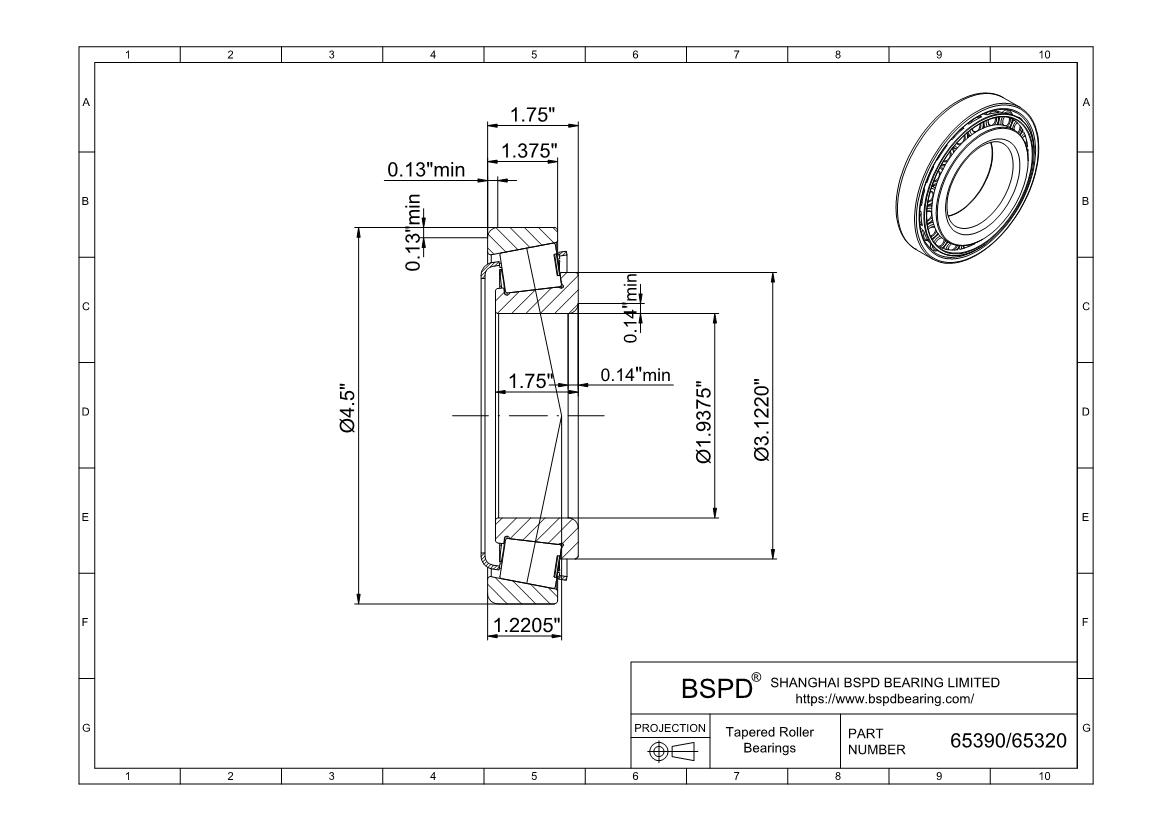

65390/65320
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.9375 "； Outer Diameter: 4.5000 "； Width (Thickness): 1.7500 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 65390/65320 |
| Bore diameter | 1.9375 " |
| Outside diameter | 4.5000 " |
| Total width | 1.7500 " |
| Shoulder diameter of inner ring | 3.1220 " |
| Widthof inner ring | 1.7500 " |
| Width of outer ring | 1.3750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 31 |
| Basic dynamic load rating (Cr) | 226 |
| Basic static load rating (Cor) | 224 |
| Fatigue load limit (Pu) | 25 |
| Reference speed | 5000 r/min |
| Limiting speed | 6300 r/min |
| Mass | 2.2 kg |
| Limiting value (e) | 0.43 |
| Axial load factor (Y) | 1.4 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 60 mm |
| Minimum diameter of shaft abutment (db) | 63 mm |
| Minimum diameter of housing abutment (Da) | 89 mm |
| Maximum diameter of housing abutment (Da) | 102 mm |
| Minimum diameter of housing abutment (Db) | 105 mm |
| Minimum width of space required in housing on large side face (C | 5 mm |
| Minimum width of space required in housing on small side face (C | 9.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
