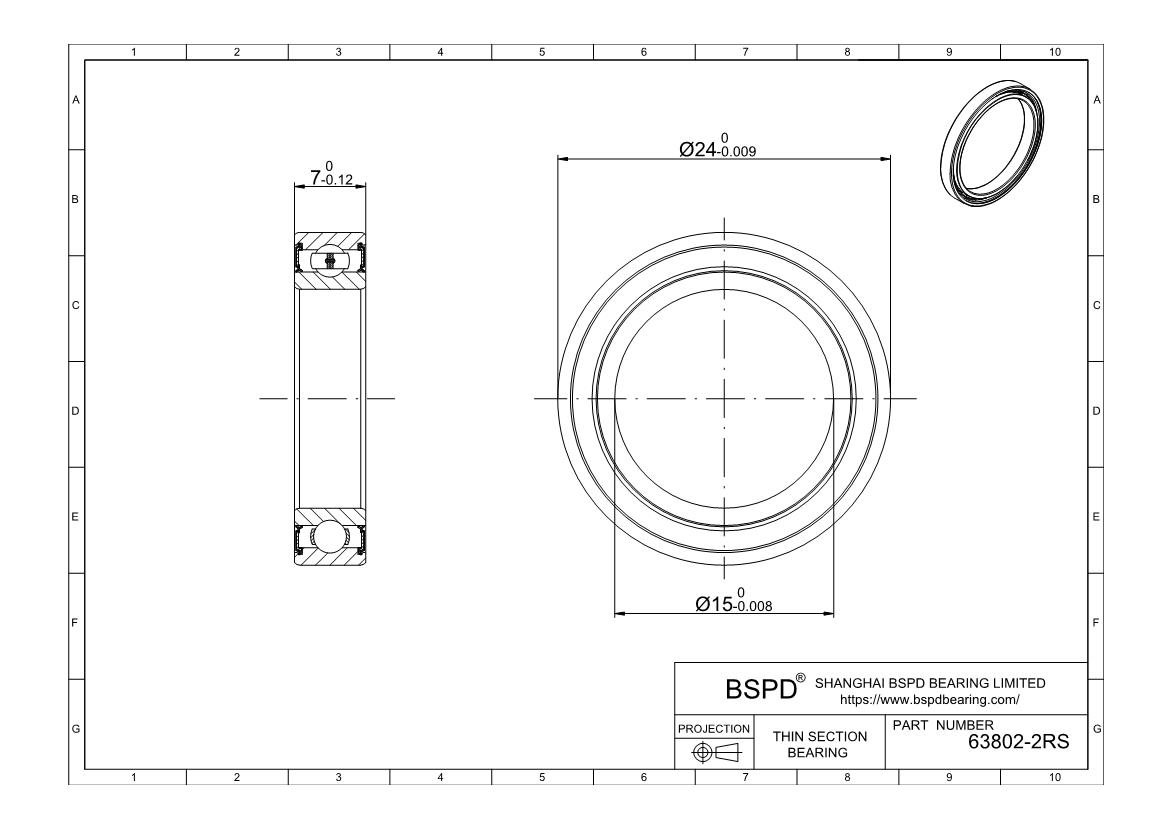

63802-2RS
67 68 69 Series Thin Section Bearings
Dimensions: Bore (Inner) Diameter: 15 mm； Outer Diameter: 24 mm； Width (Thickness): 7 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Part Number | 63802 2rs |
| For Shaft Diameter | 15mm |
| Bore Dia (d) | 15mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 24mm |
| Outer Dia (D) | 24mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width (B) | 7mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 2070 |
| Static Load Rating (Cor) (Newtons) | 1260 |
| Max Speed (Grease) (X1000 RPM) | 26 |
| Max Speed (Oil) (X1000 RPM) 2 | 31 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (grams) | 10 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings 63802-2RS ? 67 68 69 Series Thin Section Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
