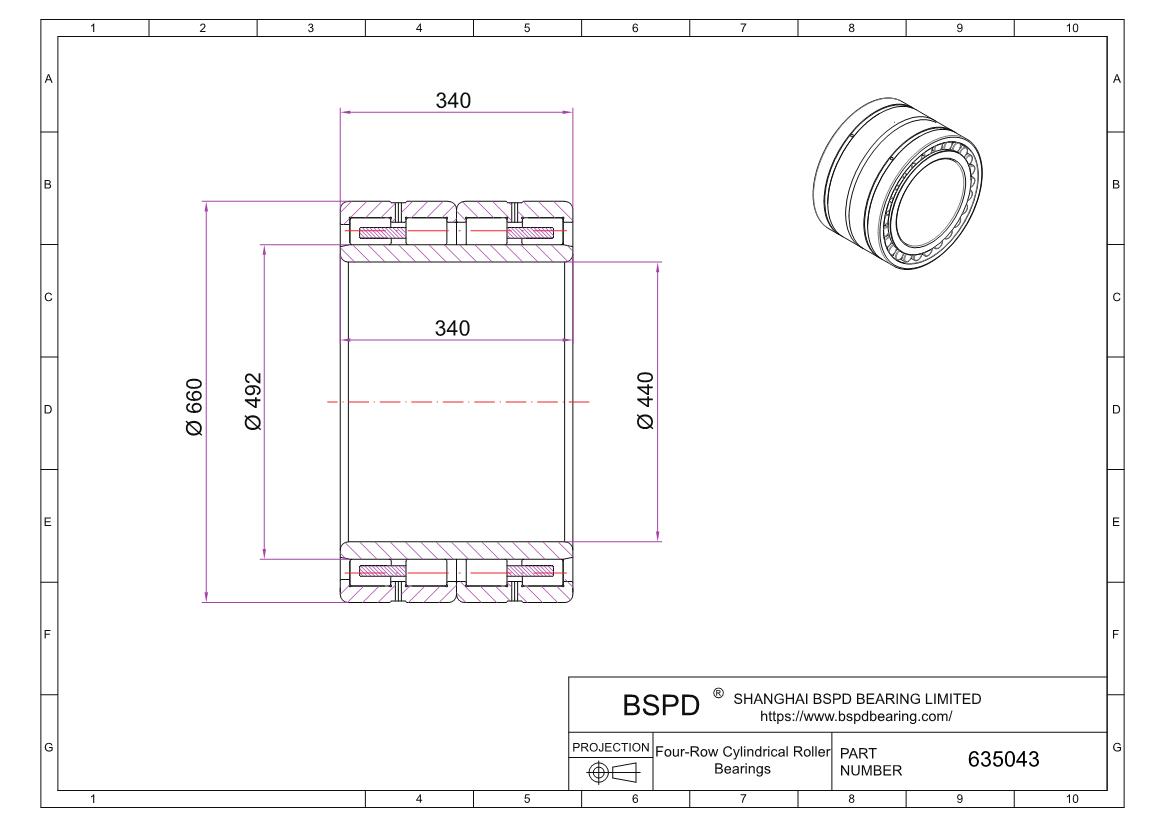

635043 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 440 mm； Outer Diameter: 660 mm； Width (Thickness): ;

635043
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number635043
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia440 mm
Outer Dia660 mm
Total Bearing Width Over Inner Ring(S)(B)340 mm
Total Bearing Width Over Outer Ring(S)(C)340 mm
Dynamic Radial Load7210 kN
Static Radial Load13700 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)6 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)6 mm
Dynamic Load Rating7210 kN
Static Load Rating13700 kN
Fatigue Load Limit(Pu)1080 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)450
Mass Bearing436 kg
Raceway Diameter Inner Ring(F)492 mm
Design Variant/FeatureBC4.4/WO
Outer Ring Shoulder Diameter(D1)579.8 mm
635043
