62312-2RS
Deep Groove Ball Bearings

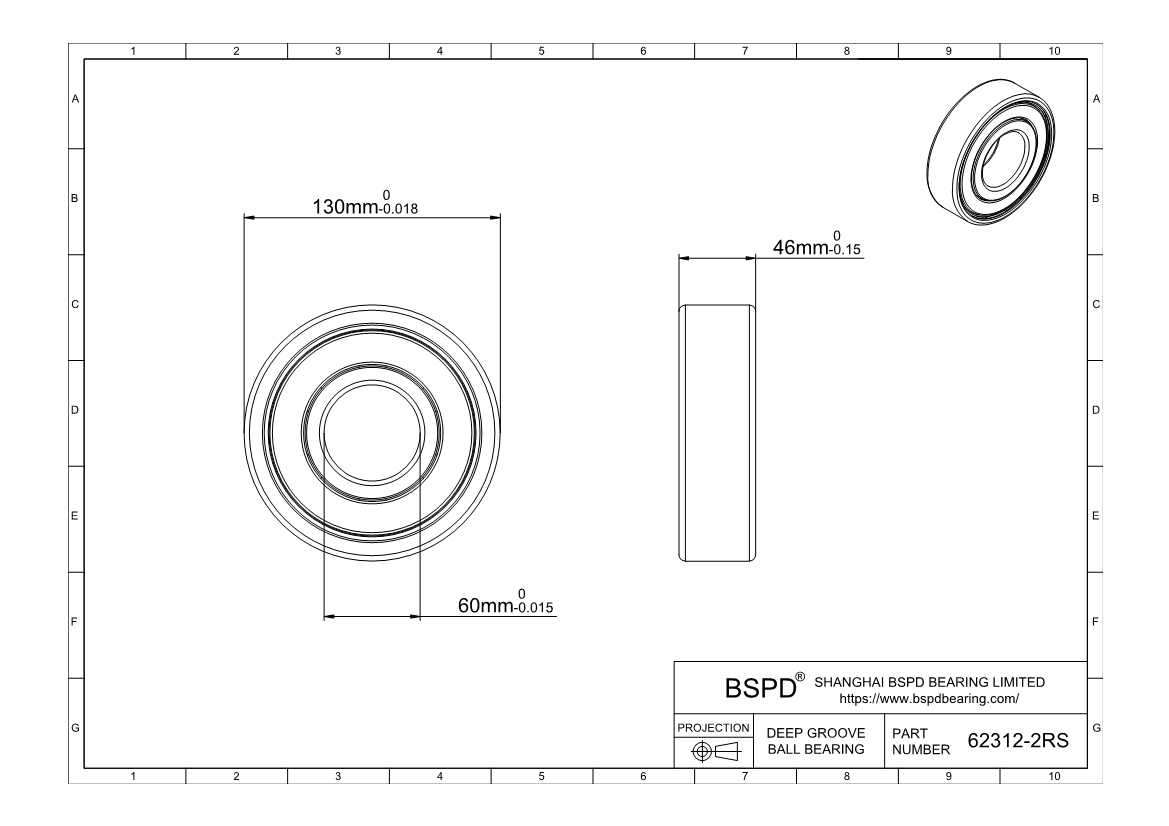

Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 130 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Part Number | 62312 2RS |
| For Shaft Diameter | 60 mm |
| Bore Dia (d) | 60 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| For Housing ID | 130 mm |
| Outer Dia (D) | 130 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width (B) | 46 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 81800 |
| Static Load Rating (Cor) (Newtons) | 51900 |
| Max Speed (Grease) (X1000 RPM) | 8.1 |
| Max Speed (Oil) (X1000 RPM) | 10 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| Ball Qty | |
| Ball Dia | |
| Weight (grams) | 2500 |
Print PDF
Request a 3D CAD Model
