6214
Deep Groove Ball Bearings

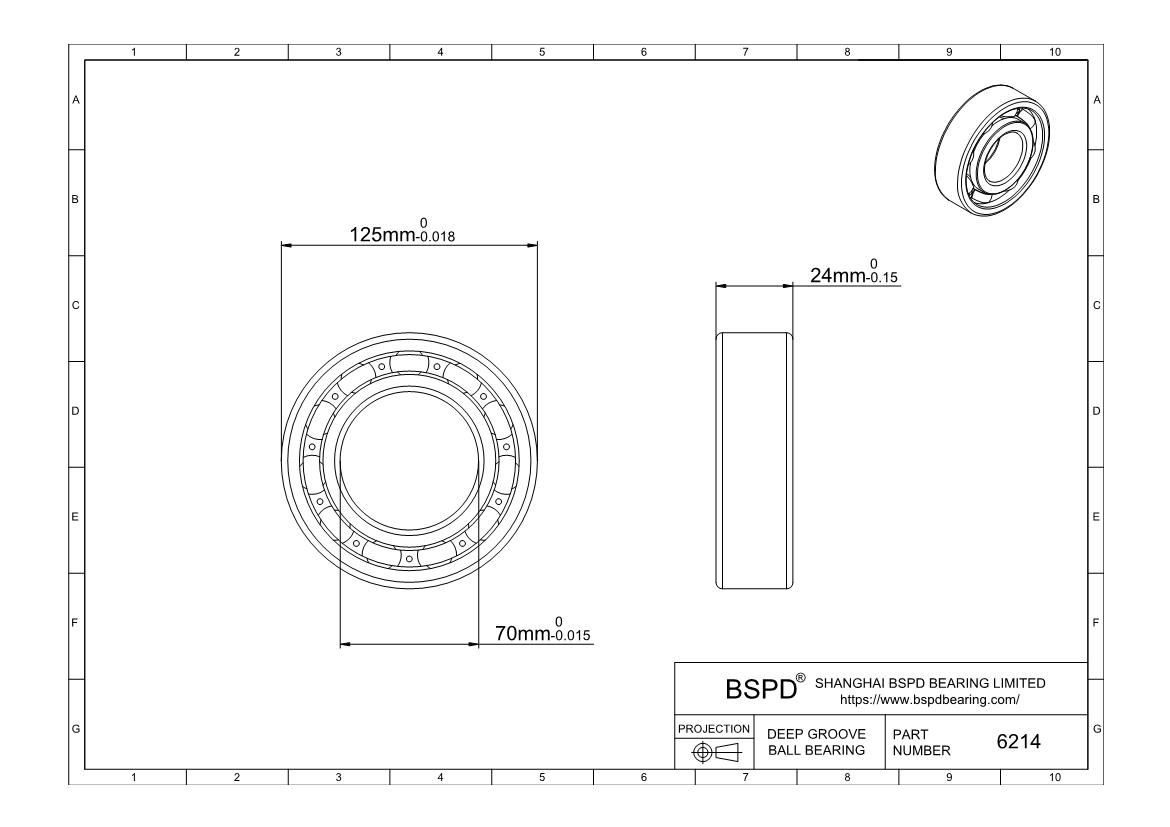

Dimensions: Bore (Inner) Diameter: 70 mm； Outer Diameter: 125 mm； Width (Thickness): 24 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | 6214 |
| For Shaft Diameter | 70 mm |
| Bore Dia (d) | 70 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| For Housing ID | 125mm |
| Outer Dia (D) | 125mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width (B) | 24mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 62200 |
| Static Load Rating (Cor) (Newtons) | 44100 |
| Max Speed (Grease) (X1000 RPM) | 5 |
| Max Speed (Oil) (X1000 RPM) | 6.3 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.01mm to 0.03mm |
| RoHS | Compliant |
| Ball Qty | 11 |
| Ball Dia | 16.669mm |
| Weight (grams) | 1070 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings 6214 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
