6211ZZ
Deep Groove Ball Bearings

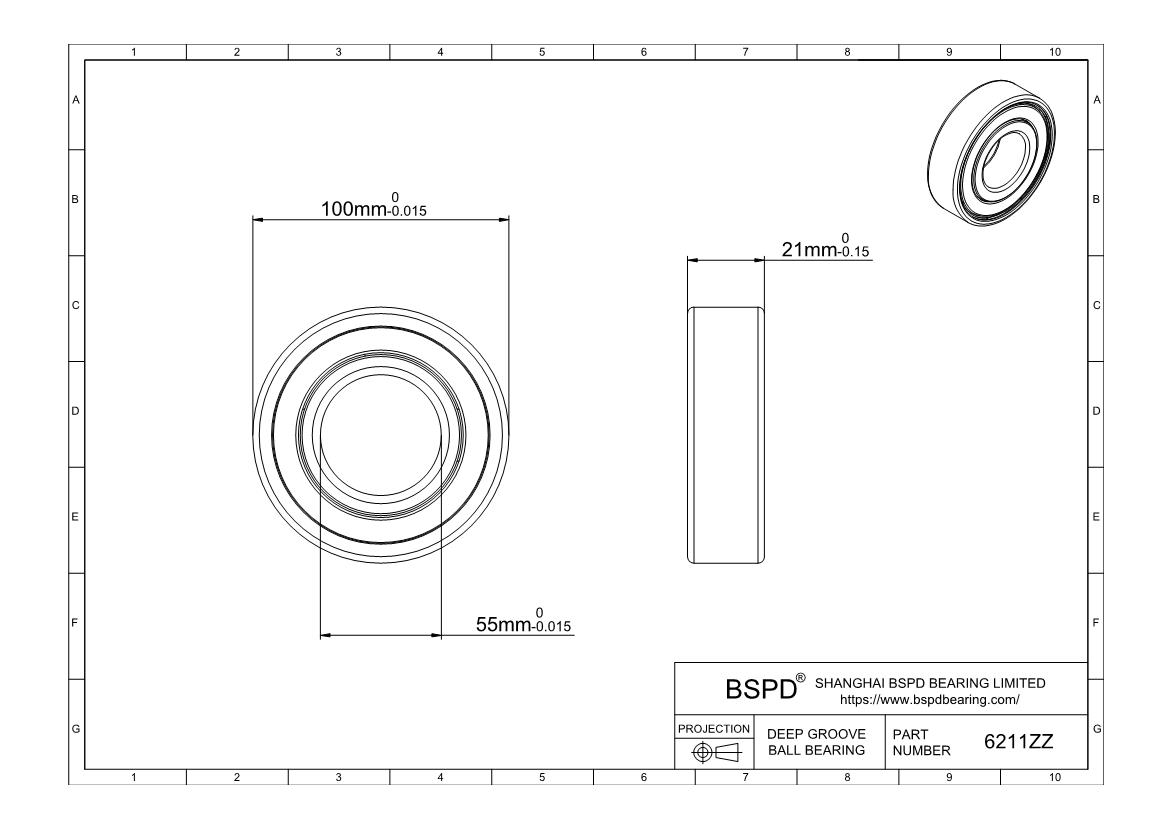

Dimensions: Bore (Inner) Diameter: 55 mm； Outer Diameter: 100 mm； Width (Thickness): 21 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | 6211ZZ |
| For Shaft Diameter | 55 mm |
| Bore Dia (d) | 55 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| For Housing ID | 100mm |
| Outer Dia (D) | 100mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width (B) | 21mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 43400 |
| Static Load Rating (Cor) (Newtons) | 29400 |
| Max Speed (Grease) (X1000 RPM) | 6.3 |
| Max Speed (Oil) (X1000 RPM) | 7.5 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| Ball Qty | 10 |
| Ball Dia | 14.288mm |
| Weight (grams) | 599 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings 6211ZZ ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
