605ZZ Miniature Bearing

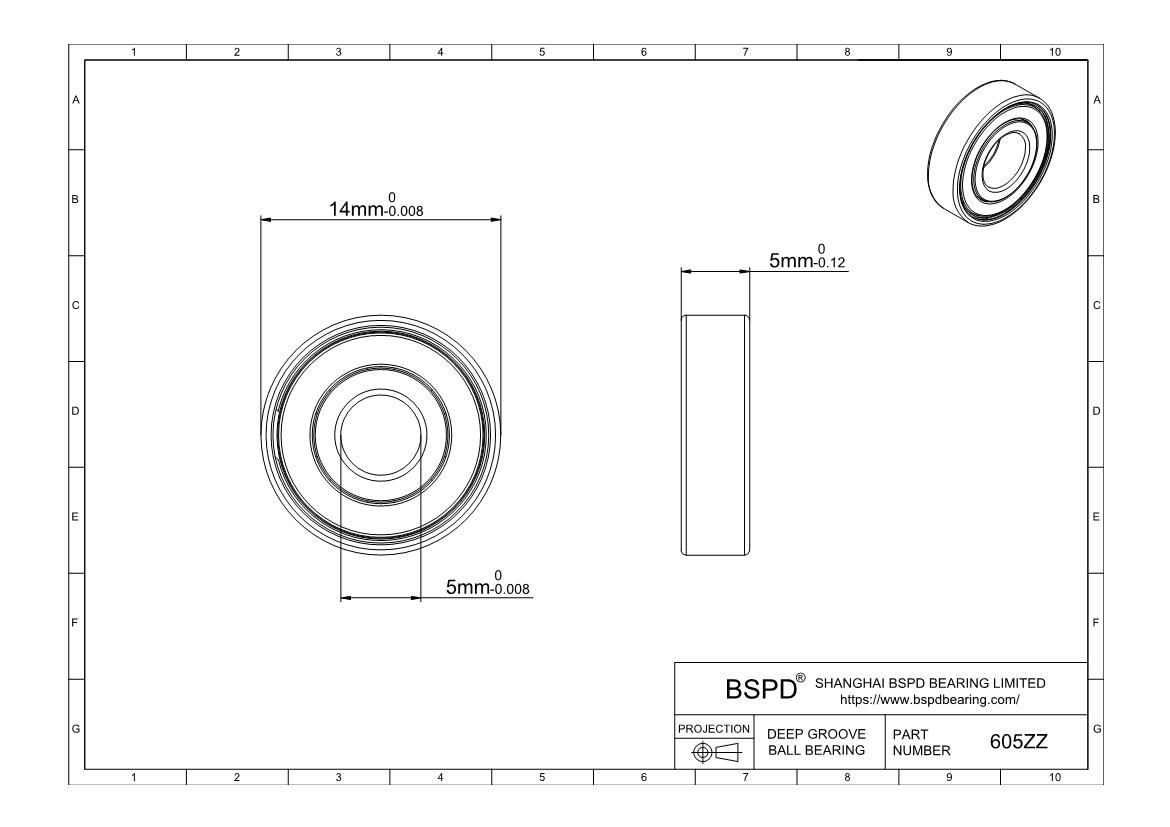

Dimensions: Bore (Inner) Diameter: 5 mm； Outer Diameter: 14 mm； Width (Thickness): 5 mm;

605ZZ
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number 605zz
For Shaft Diameter 5mm
Bore Dia (d) 5mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 14mm
Outer Dia (D) 14mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 5mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 1130
Static Load Rating (Cor) (Newtons) 406
Max Speed (Grease) (X1000 RPM) 40
Max Speed (Oil) (X1000 RPM)  50
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 2.3810mm
Weight (grams) 3.75
605ZZ
