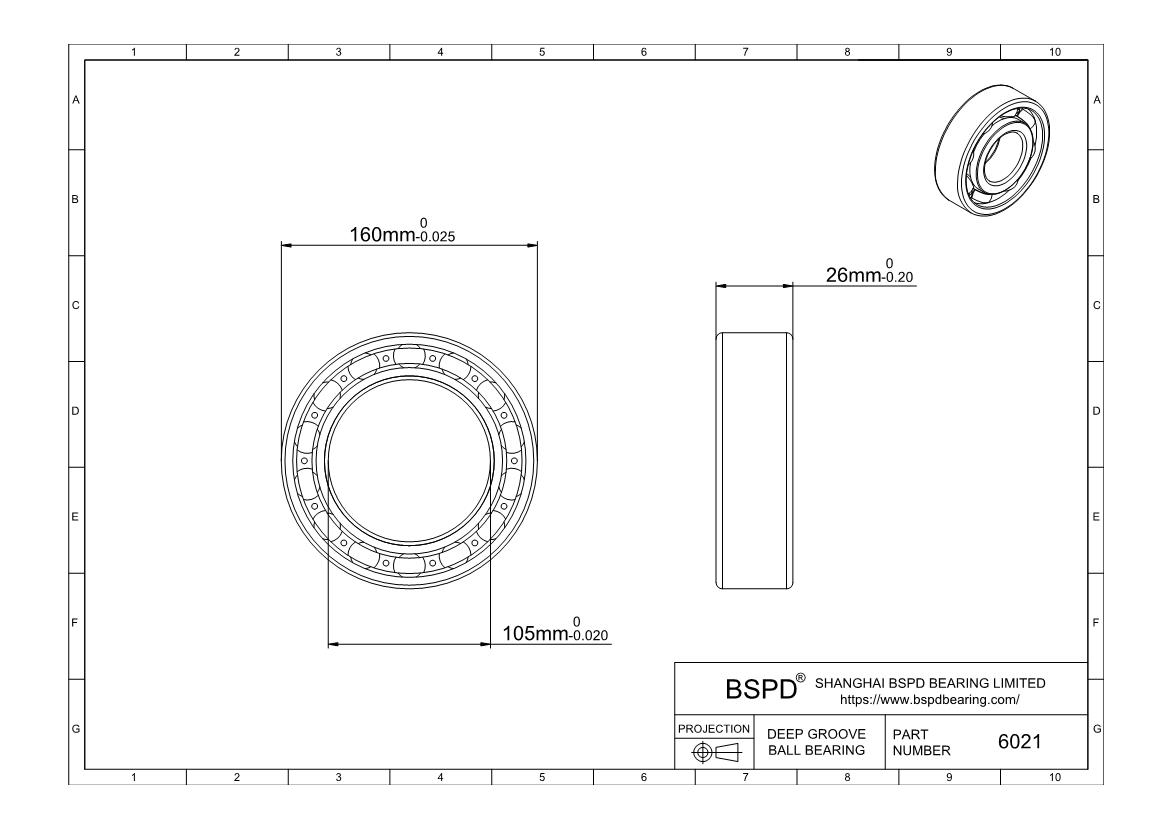

6021
Deep Groove Ball Bearings
Dimensions: Bore (Inner) Diameter: 105 mm； Outer Diameter: 160 mm； Width (Thickness): 26 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | 6021 |
| For Shaft Diameter | 105 mm |
| Bore Dia (d) | 105 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| For Housing ID | 160mm |
| Outer Dia (D) | 160mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width (B) | 26mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 72300 |
| Static Load Rating (Cor) (Newtons) | 65800 |
| Max Speed (Grease) (X1000 RPM) | 4 |
| Max Speed (Oil) (X1000 RPM) | 4.8 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.015mm to 0.041mm |
| RoHS | Compliant |
| Ball Qty | 14 |
| Ball Dia | 17mm |
| Weight (grams) | 1560 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings 6021 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
