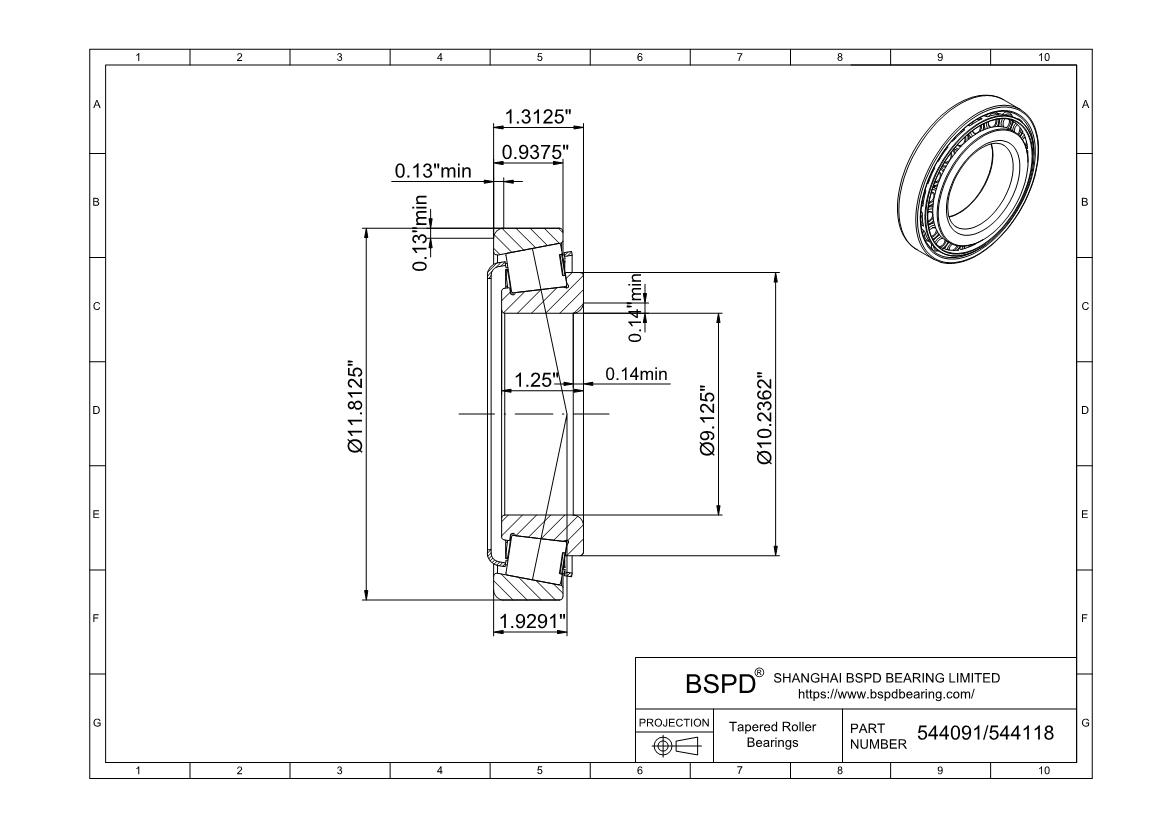

544091/544118
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 9.1250 "； Outer Diameter: 11.8125 "； Width (Thickness): 1.3125 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 544091/544118 |
| Bore diameter | 9.1250 " |
| Outside diameter | 11.8125 " |
| Total width | 1.3125 " |
| Shoulder diameter of inner ring | 10.2362 " |
| Widthof inner ring | 1.2500 " |
| Width of outer ring | 0.9375 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 49 |
| Basic dynamic load rating (Cr) | 267 |
| Basic static load rating (Cor) | 425 |
| Fatigue load limit (Pu) | 39 |
| Reference speed | 1500 r/min |
| Limiting speed | 1900 r/min |
| Mass | 5.2 kg |
| Limiting value (e) | 0.4 |
| Axial load factor (Y) | 1.5 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 247 mm |
| Minimum diameter of shaft abutment (db) | 249 mm |
| Minimum diameter of housing abutment (Da) | 278 mm |
| Maximum diameter of housing abutment (Da) | 284 mm |
| Minimum diameter of housing abutment (Db) | 284 mm |
| Minimum width of space required in housing on large side face (C | 5 mm |
| Minimum width of space required in housing on small side face (C | 9.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 544091/544118 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
