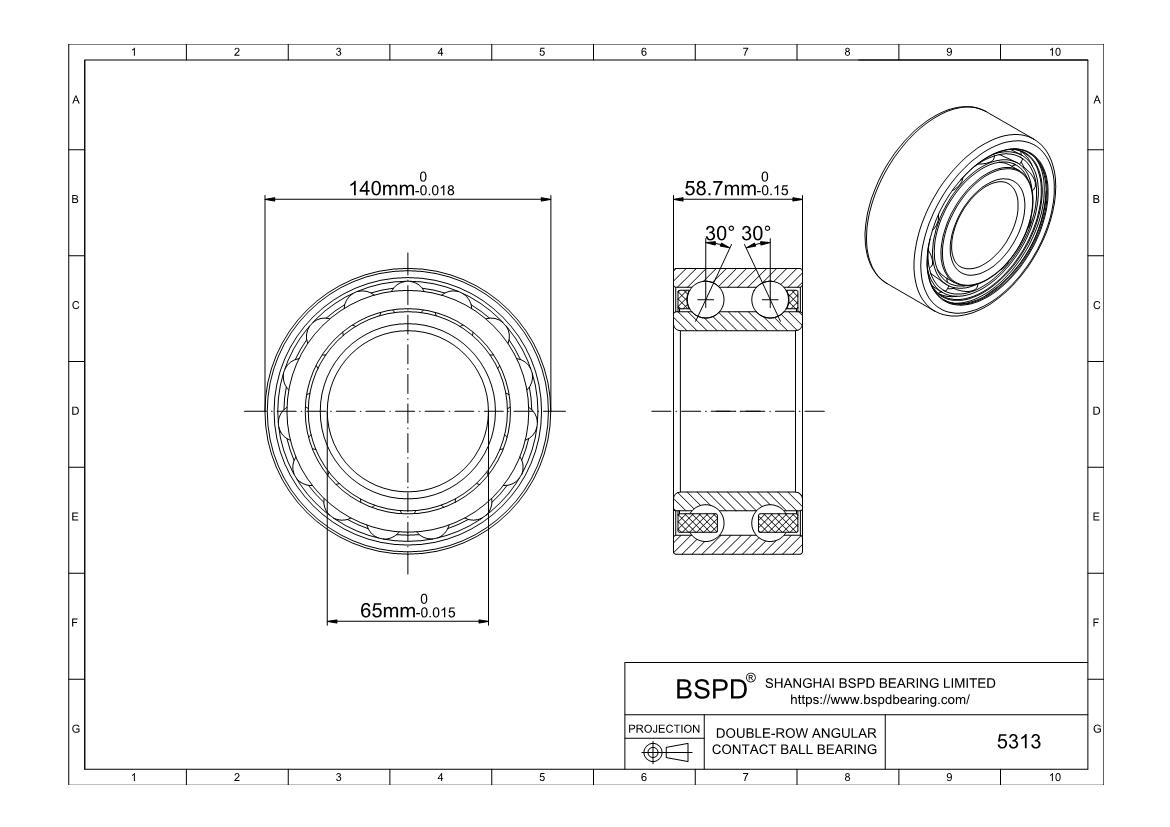

5313
Double Row Angular Contact Ball Bearings
Dimensions: Bore (Inner) Diameter: 65 mm； Outer Diameter: 140 mm； Width (Thickness): 58.7 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Construction | One |
| Single Row/Double Row | Double |
| Seal Type | Open |
| Precision Rating | P0 (ABEC-1) |
| Contact Angle | 30 º |
| Part Number | 5313 |
| Bore Dia (d) | 65 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia (D) | 140 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width (B) | 58.7 mm |
| Width Tolerance | -0.15mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon 66 |
| Dynamic Load Rating (Cr) (KN) | 142 |
| Static Load Rating (Cor) (KN) | 113 |
| Max Speed (Grease) (RPM) | 3200 |
| Max Speed (Oil) (RPM) | 4300 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Mass(Kg) | 3.85 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
