5311ZZ
Double Row Angular Contact Ball Bearings

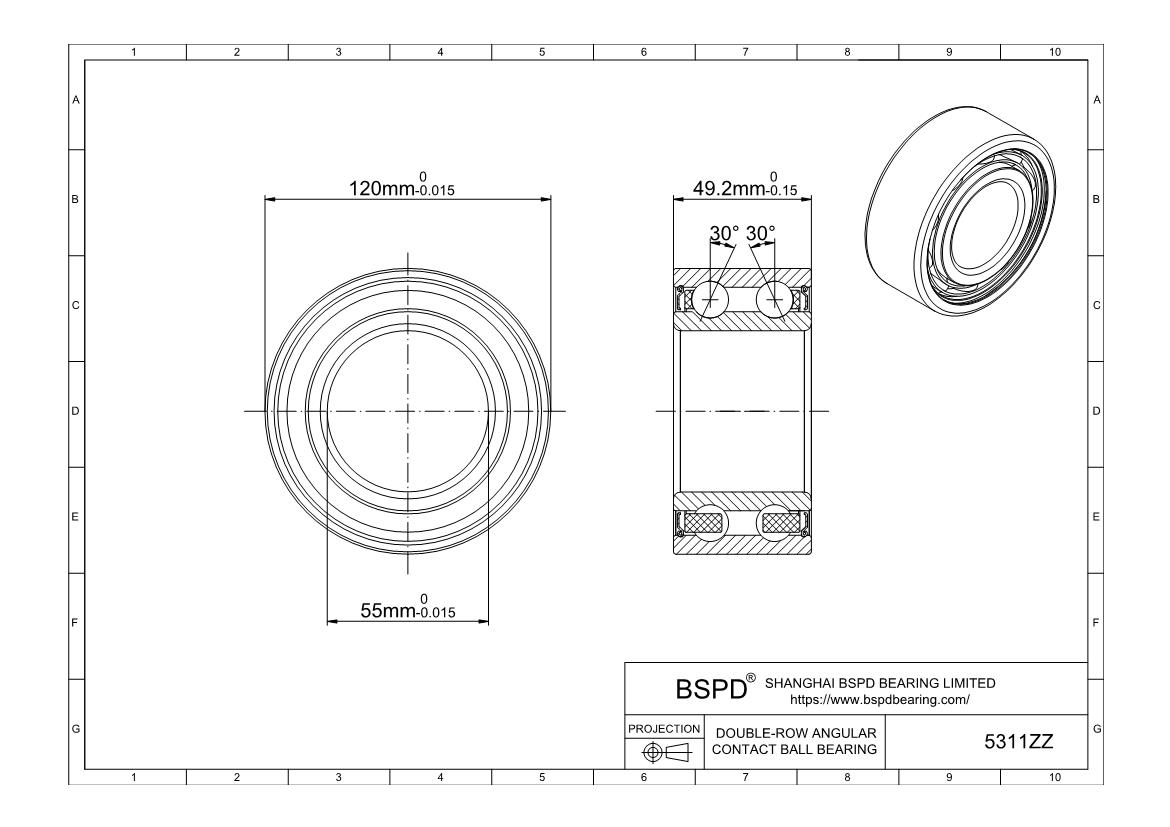

Dimensions: Bore (Inner) Diameter: 55 mm； Outer Diameter: 120 mm； Width (Thickness): 49.2 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Construction | One |
| Single Row/Double Row | Double |
| Seal Type | Shielded |
| Precision Rating | P0 (ABEC-1) |
| Contact Angle | 30 º |
| Part Number | 5311 ZZ |
| Bore Dia (d) | 55 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia (D) | 120 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width (B) | 49.2 mm |
| Width Tolerance | -0.15mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon 66 |
| Dynamic Load Rating (Cr) (KN) | 95 |
| Static Load Rating (Cor) (KN) | 73 |
| Max Speed (Grease) (RPM) | 3420 |
| Max Speed (Oil) (RPM) | 4500 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Mass(Kg) | 2.3 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Angular Contact Ball Bearings 5311ZZ ? Double Row Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
