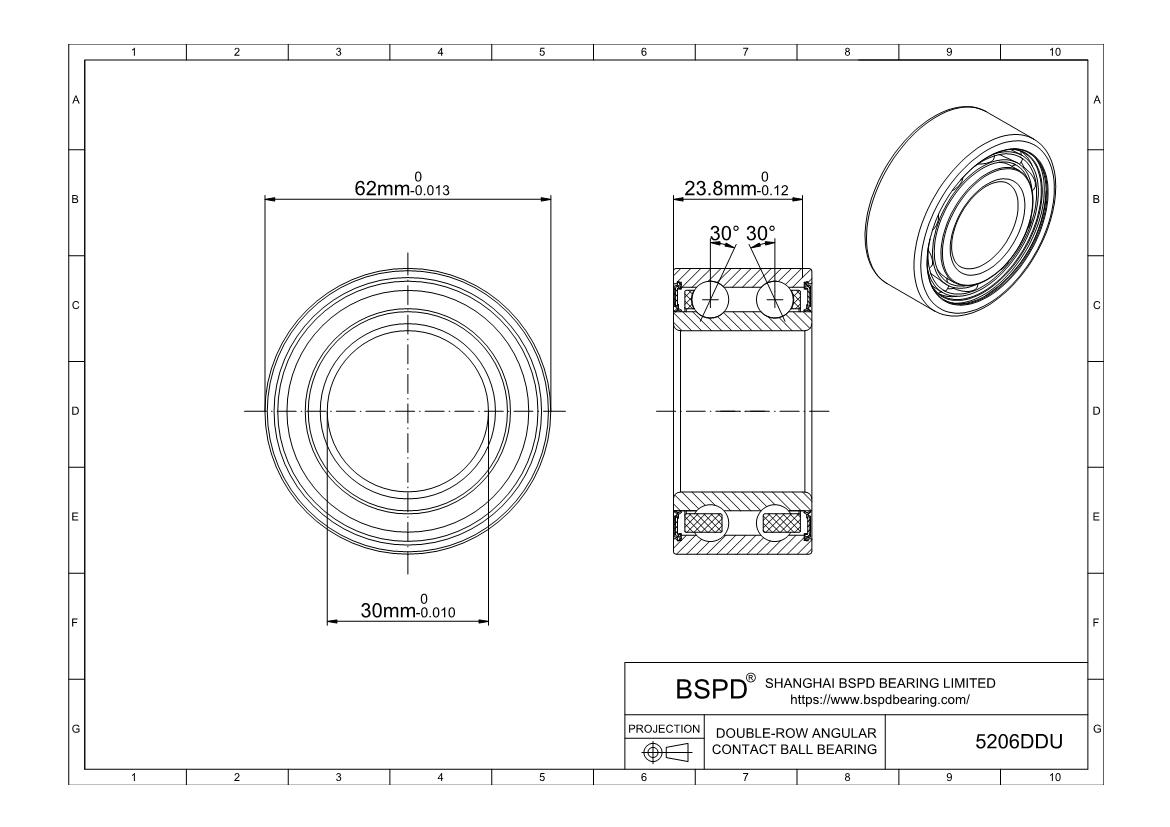

5206DDU
Double Row Angular Contact Ball Bearings
Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 62 mm； Width (Thickness): 23.8 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Construction | One |
| Single Row/Double Row | Double |
| Seal Type | Sealed |
| Precision Rating | P0 (ABEC-1) |
| Contact Angle | 30 º |
| Part Number | 5206 DDU |
| Bore Dia (d) | 30 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia (D) | 62 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 23.8 mm |
| Width Tolerance | -0.12mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon 66 |
| Dynamic Load Rating (Cr) (KN) | 29.6 |
| Static Load Rating (Cor) (KN) | 21.1 |
| Max Speed (Grease) (RPM) | 5680 |
| Max Speed (Oil) (RPM) | 7600 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Mass(Kg) | 0.29 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Angular Contact Ball Bearings 5206DDU ? Double Row Angular Contact Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
