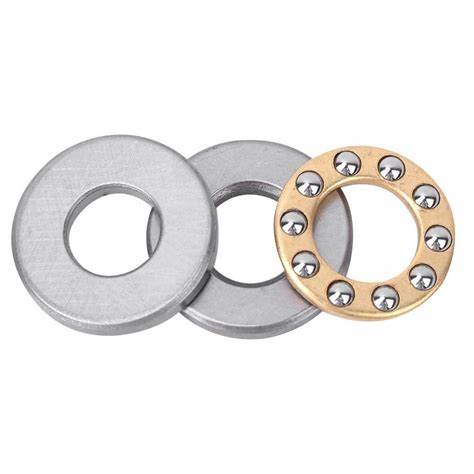

51136m Bearings
51100 Series Thrust Ball Bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 225 mm； Width (Thickness): 34 mm;
REQUEST FOR QUOTE
Product Attributes
| Attributes | Values |
| Part Number | 51136m Bearings Bearing |
| Units | mm |
| Bearing Type | with grooved raceway(s) are available |
| Bore Dia (d) | 180mm |
| Outer Dia (D) | 225mm |
| Radius (min) (rs) | 1.1 |
| Static Load Ratings(Cor) | 582000 |
| Dynamic Load Rating(Cr) | 151000 |
| Max Speed (Grease) (X1000 RPM) | 1 |
| Max Speed (Oil) (X1000 RPM) | 2 |
| Height (H) | 34mm |
| Outer Dia. Pilot (D1) | 222mm |
| Bore Dia. Clearance (d1) | 183mm |
| Weight(g) | 3077 |
| Material | 52100 chrome steel, or equivalent. |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thrust Ball Bearings 51136m Bearings ? 51100 Series Thrust Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
