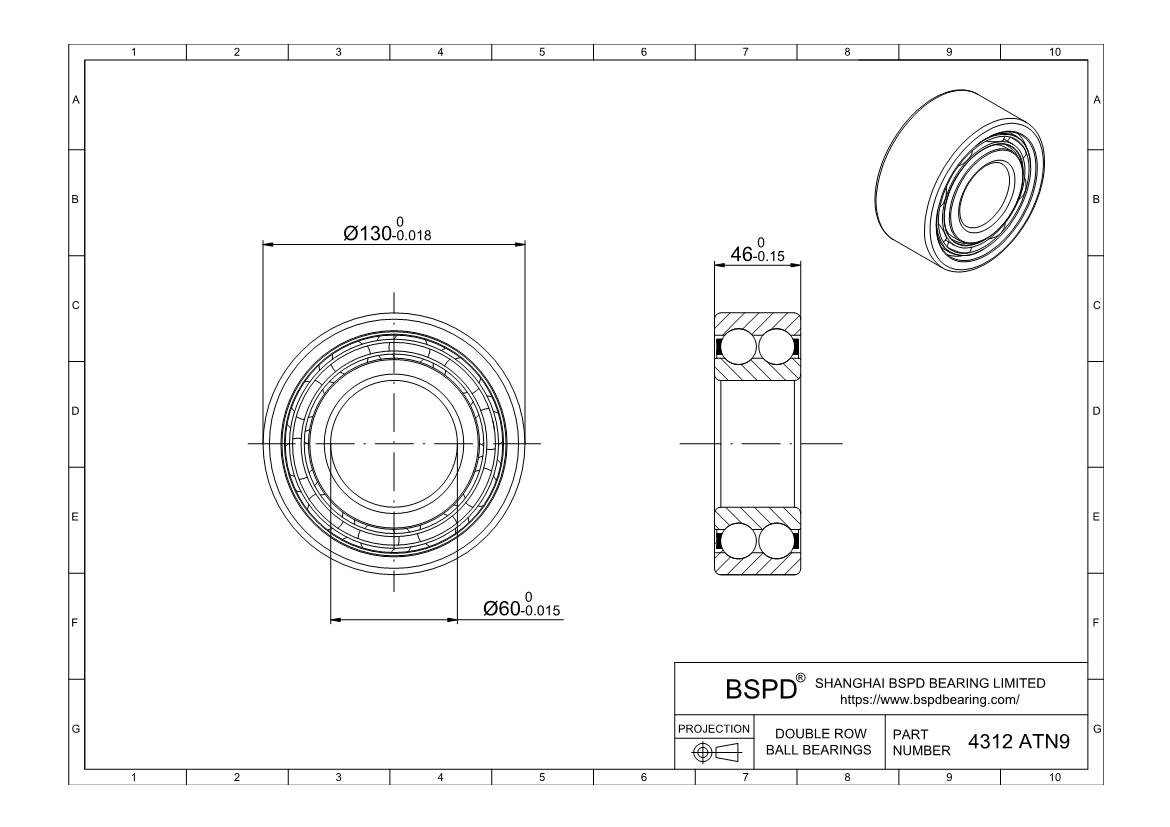

4312 ATN9
Deep Groove Ball Bearings
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 130 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Double Row |
| Seal Type | Open |
| Part Number | 4312 ATN9 |
| For Shaft Diameter | 60 mm |
| Bore Dia (d) | 60 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| For Housing ID | 130 mm |
| Outer Dia (D) | 130 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width (B) | 46 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon 66 (PA66) |
| Dynamic Load Rating (C) (KN) | 112 |
| Static Load Rating (C0) (KN) | 98 |
| Reference Speed (X1000 RPM) | 4.5 |
| Limiting Speed (X1000 RPM) | 8.5 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| Weight (grams) | 2650 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings 4312 ATN9 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
