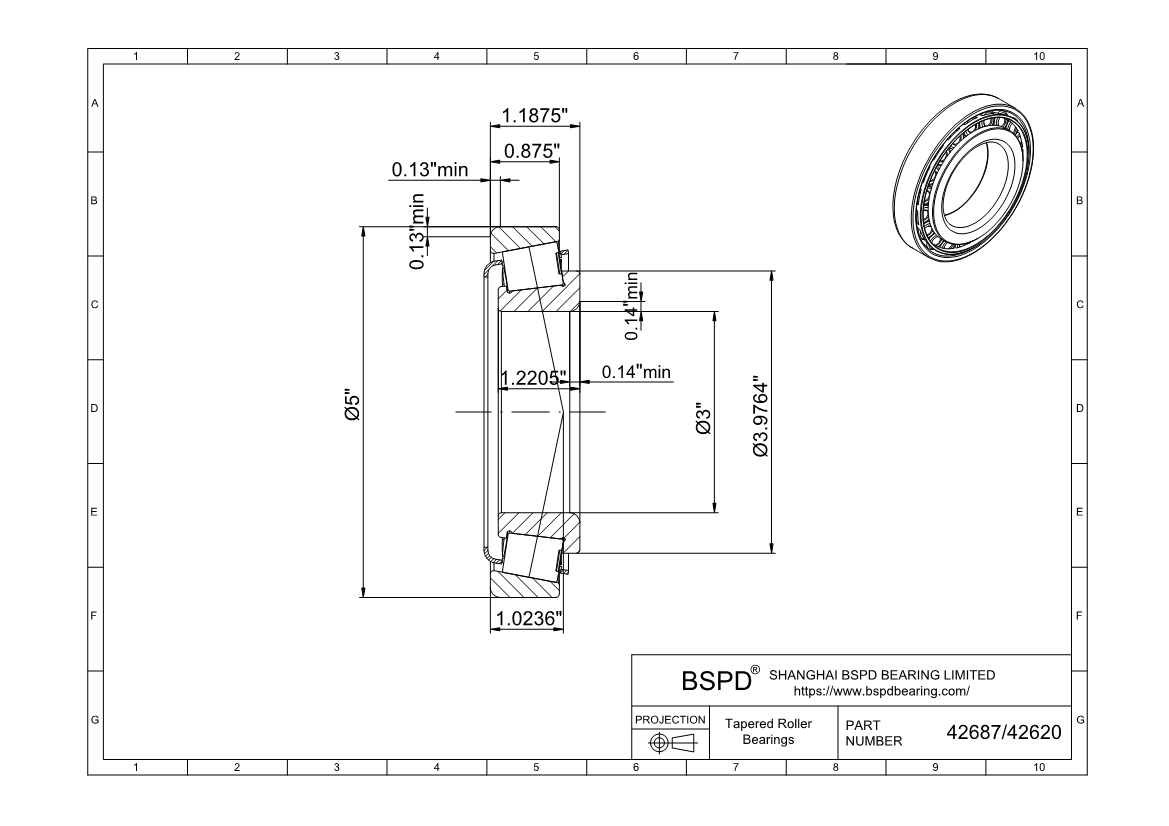

42687/42620
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 3.0000 "； Outer Diameter: 5.0000 "； Width (Thickness): 1.1875 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 42687/42620 |
| Bore diameter | 3.0000 " |
| Outside diameter | 5.0000 " |
| Total width | 1.1875 " |
| Shoulder diameter of inner ring | 3.9764 " |
| Widthof inner ring | 1.2205 " |
| Width of outer ring | 0.8750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 26 |
| Basic dynamic load rating (Cr) | 171 |
| Basic static load rating (Cor) | 204 |
| Fatigue load limit (Pu) | 24 |
| Reference speed | 4000 r/min |
| Limiting speed | 5000 r/min |
| Mass | 1.45 kg |
| Limiting value (e) | 0.43 |
| Axial load factor (Y) | 1.4 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 88 mm |
| Minimum diameter of shaft abutment (db) | 90 mm |
| Minimum diameter of housing abutment (Da) | 112 mm |
| Maximum diameter of housing abutment (Da) | 114 mm |
| Minimum diameter of housing abutment (Db) | 120 mm |
| Minimum width of space required in housing on large side face (C | 5 mm |
| Minimum width of space required in housing on small side face (C | 7.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 42687/42620 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
