4210 ATN9
Deep Groove Ball Bearings

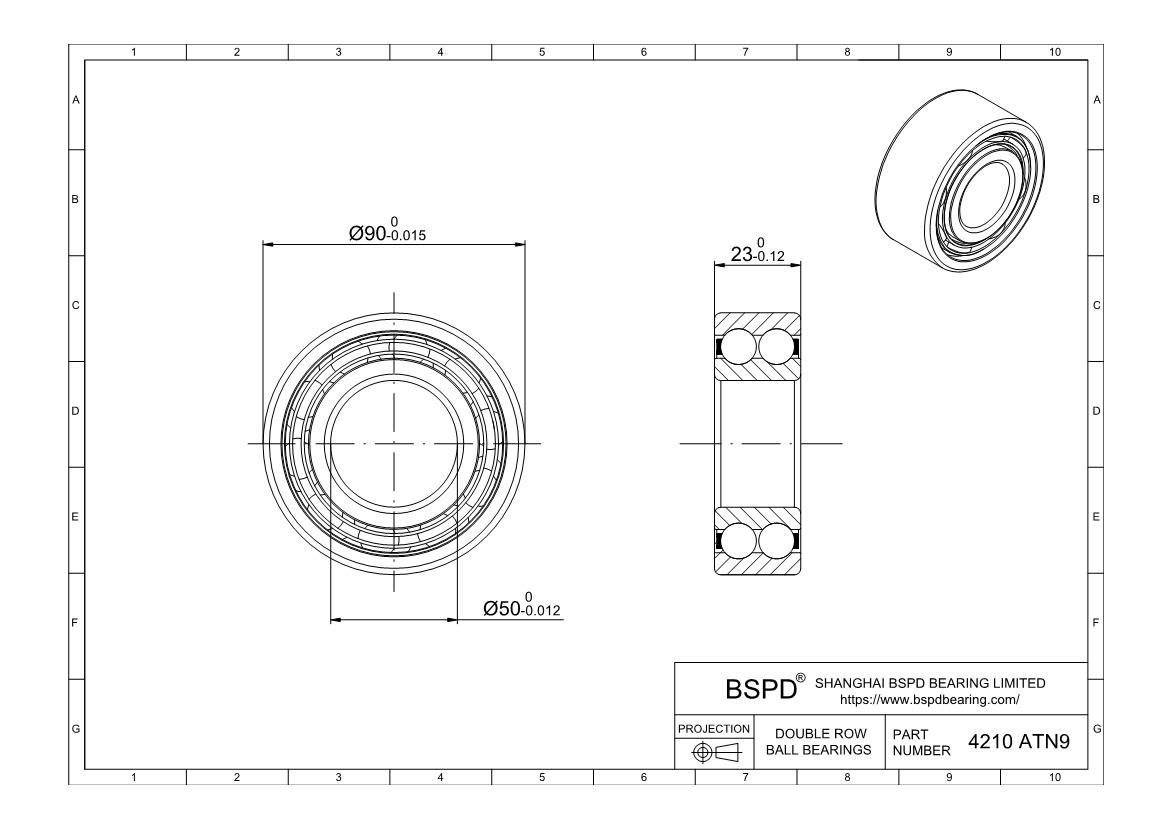

Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 90 mm； Width (Thickness): 23 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Double Row |
| Seal Type | Open |
| Part Number | 4210 ATN9 |
| For Shaft Diameter | 50 mm |
| Bore Dia (d) | 50 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| For Housing ID | 90 mm |
| Outer Dia (D) | 90 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width (B) | 23 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Nylon 66 (PA66) |
| Dynamic Load Rating (C) (KN) | 41 |
| Static Load Rating (C0) (KN) | 40 |
| Reference Speed (X1000 RPM) | 6 |
| Limiting Speed (X1000 RPM) | 11 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.006mm to 0.023mm |
| RoHS | Compliant |
| Weight (grams) | 580 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings 4210 ATN9 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
